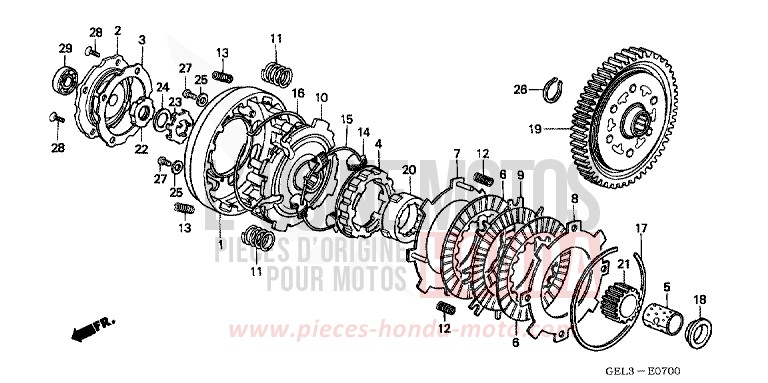

CLUTCH for XR50R FIGHTING RED (R134) from 2002

CLUTCH for XR50R FIGHTING RED (R134) from 2002
Reference
Product name
#22 90231-087-010 i

NUT, LOCK, 14MM

Price €8.76
#24 90432-086-000

WASHER B, LOCK

Price €12.31
#25 90483-041-000 i

WASHER, STOPPER

Price €6.54
#26 90601-001-000

CIRCLIP, EXTERNAL, 17MM

Price €6.52
#27 93500-050100A i

SCREW, PAN, 5X10

Price €0.85
#28 93600-050100A i

SCREW, FLAT, 5X10

Price €0.95
#29 96100-6000000 i

BEARING, RADIAL BALL, 6000

Price €12.70
#1 22101-178-000

OUTER, CLUTCH

Price €76.15
#2 22111-178-010 i

COVER, CLUTCH OUTER

Price €19.99
#3 22119-GW8-680 i

GASKET, CLUTCH OUTER COVER

Price €3.72
#4 22120-GCF-670

CENTER, CLUTCH

Price €64.57
#5 22131-035-030 i

GUIDE, CLUTCH CENTER

Price €26.18
#6 22201-GW8-681 i

DISK A, CLUTCH FRICTION

Price €17.51
#7 22310-GB0-910 i

PLATE A, CLUTCH

Price €19.63
#8 22321-041-000 i

PLATE B, CLUTCH

Price €11.58
#9 22331-GW8-681 i

DISK B, CLUTCH FRICTION

Price €18.24
#10 22351-GB2-710

PLATE, DRIVE

Price €70.37
#11 22401-GW8-670

SPRING, CLUTCH

Price €6.55
#12 22411-092-010

SPRING, CLUTCH FREE

Price €4.46
#13 22421-040-000

SPRING, CLUTCH DAMPER

Price €4.37
#14 22531-178-000

WEIGHT, CLUTCH

Price €5.75
#15 22535-033-000

RING, CLUTCH WEIGHT CENTER

Price €10.96
#16 22536-033-000

RING, CLUTCH WEIGHT STOPPER

Price €10.96
#17 22901-001-000 i

SET RING, 102MM

Price €13.40
#18 22911-GB4-680 i

COLLAR, 17MM

Price €10.82
#19 23110-GK4-010

GEAR COMP, PRIMARY DRIVEN (69T)

Price €181.42
#20 23112-GB0-910

OUTER, DRIVE GEAR

Price €51.92
#21 23120-086-020

GEAR, PRIMARY DRIVE (17T)

Price €74.32
#23 90431-086-000 i

WASHER, LOCK, 14MM

Price €6.54
# 11330-GW8-690

COVER COMP, R CRANKCASE

Price €303.56
# 11394-GW8-680 i

GASKET, R CRANKCASE COVER

Price €23.46
# 15651-GB4-790 i

GAUGE, OIL LEVEL

Price €22.75
# 22811-040-020

LEVER, CLUTCH

Price €53.63
# 22820-918-020 i

PLATE COMP, CLUTCH CAM

Price €27.65
# 22825-046-000

SPRING, CAM PLATE SIDE

Price €4.16
# 22830-041-000

PLATE COMP, CLUTCH LIFTER

Price €17.57
# 22846-040-010 i

BOLT, CLUTCH ADJUSTING

Price €10.93
# 22860-046-000 i

RETAINER COMP, BALL

Price €8.08
# 25551-918-007 i

THROUGH, OIL

Price €2.98
# 25555-065-000

SPRING, OIL THROUGH

Price €5.57
# 90485-040-000

WASHER, 8MM

Price €5.71
# 90702-GB6-910 i

DOWEL PIN, 8X12

Price €3.97
# 91202-302-010 i

OIL SEAL, 138X24X5

Price €2.11
# 91303-001-000 i

O-RING, 8MM

Price €6.88
# 91307-035-000 i

O-RING, 18X3

Price €1.44
# 94030-08000 i

NUT, HEX, 8MM

Price €0.88
# 96001-0604000 i

BOLT, FLANGE, 6X40

Price €1.74
# 96001-0606500 i

BOLT, FLANGE, 6X65

Price €1.81
# 96001-0608000 i

BOLT, FLANGE, 6X80

Price €1.81
