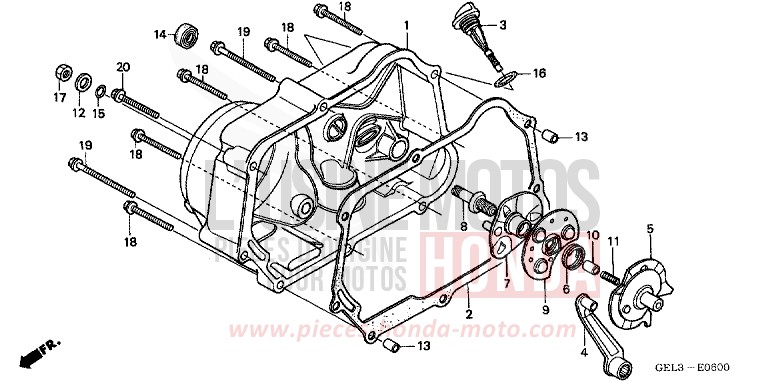

RIGHT CRANKCASE COVER for XR50R FIGHTING RED (R134) from 2002

RIGHT CRANKCASE COVER for XR50R FIGHTING RED (R134) from 2002
Reference
Product name
#3 15651-GB4-790

GAUGE, OIL LEVEL

Price €16.12
#6 22825-046-000

SPRING, CAM PLATE SIDE

Price €2.52
#12 90485-040-000

WASHER, 8MM

Price €5.70
#13 90702-GB6-910

DOWEL PIN, 8X12

Price €3.11
#15 91303-001-000

O-RING, 8MM

Price €7.69
#16 91307-035-000

O-RING, 18X3

Price €2.27
#17 94030-08000

NUT, HEX, 8MM

Price €0.86
#18 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#19 96001-0606500

BOLT, FLANGE, 6X65

Price €1.78
#20 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
#1 11330-GW8-690

COVER COMP, R CRANKCASE

Price €300.24
#2 11394-GW8-680

GASKET, R CRANKCASE COVER

Price €16.48
#4 22811-040-020

LEVER, CLUTCH

Price €36.01
#5 22820-918-020

PLATE COMP, CLUTCH CAM

Price €20.18
#7 22830-041-000

PLATE COMP, CLUTCH LIFTER

Price €13.82
#8 22846-040-010

BOLT, CLUTCH ADJUSTING

Price €8.05
#9 22860-046-000

RETAINER COMP, BALL

Price €7.00
#10 25551-918-007

THROUGH, OIL

Price €5.22
#11 25555-065-000

SPRING, OIL THROUGH

Price €3.67
#14 91202-302-010

OIL SEAL, 138X24X5

Price €5.89
