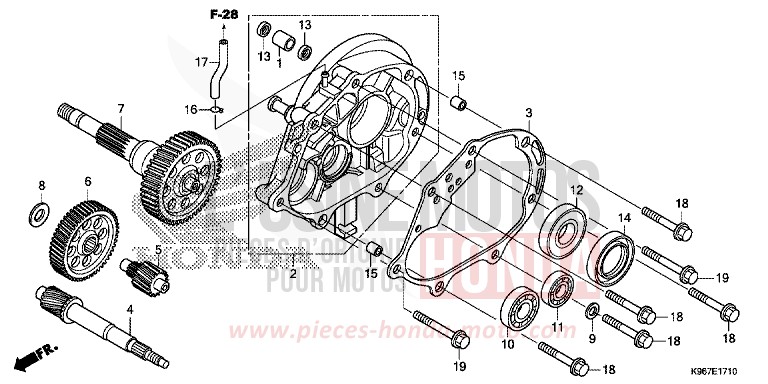

TRANSMISSION for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019

TRANSMISSION for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019
Reference
Product name
#8 90452-KGH-900 i

SPECIAL WASHER, 12MM

Price €1.86
#9 90495-MN5-000 i

WASHER SEALING, 8MM

Price €5.71
#11 91006-KZR-601

RADIAL BALL BEARING, 6201 (NTN)

Price €7.55
#12 91009-KWN-901

BEARING, RADIAL BALL, 6205UU (NTN)

Price €24.36
#15 94301-10120

STUD, 10X12

Price €2.08
#16 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#18 95701-0804500 i

FLANGE BOLT, 8X45

Price €1.74
#19 95701-0805500 i

FLANGE BOLT, 8X55

Price €2.87
#1 11204-KGF-900

SLEEVE, RR BRAKE CAM

Price €24.01
#2 21200-K97-T00

CASE COMP, TRANSMISSION

Price €88.19
#3 21395-K97-T02

GASKET, TRANSMISSION CASE (NICHIAS)

Price €3.92
#4 23411-K96-V01 i

SHAFT, DRIVE (16T)

Price €50.78
#5 23421-K96-V01 i

SHAFT, COUNTER (14T)

Price €39.17
#6 23422-K96-V01 i

GEAR, COUNTER (53T)

Price €27.62
#7 23430-K96-V01 i

GEAR COMP, FINAL (45T)

Price €96.74
#10 91004-KZR-601

BEARING, RADIAL BALL, 6202 (NTN)

Price €9.18
#13 91201-434-003 i

OIL SEAL, 14X20X32 (ARAI)

Price €6.83
#14 91204-K59-A11

OIL SEAL, 34X52X7 (NOK)

Price €2.39
#17 95005-5007530 i

TUBE, 5X75

Price €16.72
# 19200-K35-D10

PUMP ASSY, WATER

Price €104.38
# 19220-KWN-901 i

COVER COMP, WATER PUMP

Price €36.18
# 19226-KWN-900

GASKET, WATER PUMP COVER

Price €2.47
# 19300-K35-V01

THERMOSTAT ASSY

Price €50.40
# 19310-K35-V01

O-RING

Price €3.65
# 19503-KWN-900

HOSE C, WATER

Price €16.31
# 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
# 91302-KWN-900

O-RING, 34X2

Price €3.18
# 94301-08100 i

STUD, 8X10

Price €1.81
# 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
# 95701-0604000 i

FLANGE BOLT, 6X40

Price €1.25
# 96001-0601600 i

FLANGE BOLT, 6X16

Price €1.25
