DRIVE FACE 🏍️ WW125
TRANSMISSION 🏍️ WW125

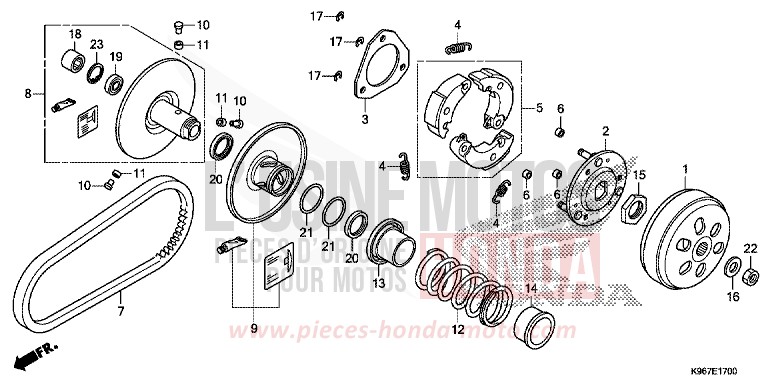

DRIVEN FACE for WW125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019

DRIVEN FACE for WW125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019
Reference
Product name
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €3.16
#11 23226-KVB-900 i

ROLLER, GUIDE

Price €2.52
#15 90202-KN7-670 i

NUT, SPECIAL, 28MM

Price €11.04
#16 90441-GY6-940 i

WASHER, 122X29X25

Price €9.68
#17 90605-166-720 i

CIRCLIP, 7MM

Price €6.52
#19 91002-GA7-701 i

BEARING, RADIAL BALL, 6902U (NTN)

Price €24.04
#19 91004-GGC-G01

BEARING, RADIAL BALL, 6902U (FCC)

Price €18.97
#19 91009-K93-T01

BEARING, RADIAL BALL, 6902U (FCC)

Price €12.79
#19 91009-KVY-961 i

BEARING, RADIAL BALL, 6902U (NSK)

Price €16.61
#21 91384-KVB-900 i

O-RING, 388X19

Price €5.58
#22 94030-12200 i

NUT, HEX, 12MM

Price €1.42
#23 94520-28000 i

CIRCLIP, INTERNAL, 28MM

Price €1.74
#1 22100-KWN-900 i

OUTER COMP, CLUTCH

Price €69.22
#2 22350-GFM-900

PLATE COMP, DRIVE

Price €25.67
#2 22350-K97-T01

PLATE COMP, DRIVE

Price €19.20
#2 22350-KVB-900

PLATE COMP, DRIVE

Price €20.48
#3 22361-KVB-900

PLATE, CLUTCH SIDE

Price €8.92
#4 22401-KVB-900

SPRING, CLUTCH

Price €2.69
#5 22535-K12-V00

WEIGHT SET, CLUTCH

Price €123.68
#6 22804-148-000

RUBBER, CLUTCH DAMPER

Price €3.01
#7 23100-K96-V01

BELT, DRIVE

Price €47.28
#8 23205-K97-T00

FACE SET, DRIVEN

Price €85.54
#9 23224-K96-V00

FACE SET, MOVABLE DRIVEN

Price €64.49
#12 23233-K96-V00

SPRING, DRIVEN FACE

Price €19.26
#13 23237-K35-V00

COLLAR, SEAL

Price €9.55
#14 23238-KVB-900

COLLAR, SPRING

Price €8.92
#18 91001-KCW-003 i

BEARING, NEEDLE, 20X29X18 (NTN)

Price €32.00
#18 91109-GGC-G01

BEARING, NEEDLE, 20X29X18 (FCC)

Price €23.28
#18 91109-KVY-902 i

BEARING, NEEDLE, 20X29X18 (SCHAEFFLER)

Price €18.66
#20 91211-K97-T01

SEAL, DRIVEN FACE, 34X41X4

Price €2.22
#20 91211-KN7-671 i

SEAL, DRIVEN FACE, 34X41X4

Price €8.47
# 19200-K35-D10

PUMP ASSY, WATER

Price €104.38
# 19220-KWN-901 i

COVER COMP, WATER PUMP

Price €36.18
# 19226-KWN-900

GASKET, WATER PUMP COVER

Price €2.47
# 19300-K35-V01

THERMOSTAT ASSY

Price €50.40
# 19310-K35-V01

O-RING

Price €3.65
# 19503-KWN-900

HOSE C, WATER

Price €16.31
# 90701-KWN-901

CLAMP, WATER HOSE, 24MM

Price €3.97
# 91302-KWN-900

O-RING, 34X2

Price €3.18
# 94301-08100 i

DOWEL PIN, 8X10

Price €1.81
# 95701-0602200 i

BOLT, FLANGE, 6X22

Price €1.42
# 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
# 96001-0601600 i

BOLT, FLANGE, 6X16

Price €1.25
