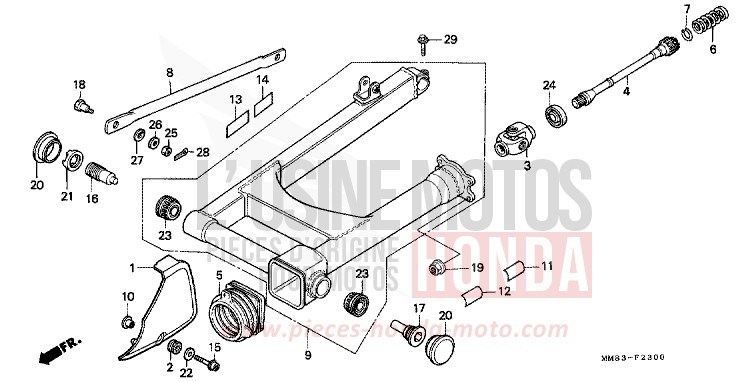

SWINGARM for Shadow BLACK-Z (NH1Z) from 1988

SWINGARM for Shadow BLACK-Z (NH1Z) from 1988
Reference
Product name
#3 40200-MG8-003

JOINT COMP, YOKE

Contact us
#4 40201-MG8-003

SHAFT, PROPELLER

Contact us
#5 40207-MG8-000

BOOT, JOINT

Price €47.36
#6 40215-ME9-003 i

SPRING, PROPELLER SHAFT

Price €9.53
#7 40221-MB0-000

RING OF STOPPER

Price €8.45
#8 43431-ME9-010

ARM, RR BRAKE STOPPER

Contact us
#9 52100-MM8-000ZC

SWINGARM ASSY NH1Z (NH1Z BLACK-Z)

Contact us
#12 87505-MM8-610

MARK, TIRE CAUTION

Contact us
#13 87508-415-670

LABEL

Price €15.70
#14 87512-MM8-610

MARK, ACCESSORIES &amp LOADING CAUTION

Contact us
#15 90080-MG8-000

BOLT, FLANGE SOCKET, 6X25

Price €6.58
#16 90121-HA6-000

BOLT, R RR FORK PIVOT

Contact us
#17 90122-MB0-000

BOLT, L RR FORK PIVOT

Price €44.18
#18 90133-286-000

BOLT, RR BRAKE STOPPER ARM

Price €9.55
#19 90308-357-000

NUT, HEX, 10MM

Price €11.66
#20 90312-MB0-700 i

CAP, R LOCK NUT

Price €26.09
#21 90355-469-000

NUT, BLOCAGE ARTICULATION ARM OSCILLANT

Price €22.75
#22 90503-SA0-000

WASHER, PLAIN, 9MM

Price €5.27
#23 91066-HA7-671 i

BEARING, TAPER ROLLER, 17X40X1325 (KOYO)

Price €63.19
#23 91066-HA7-672 i

ROULEMENT OF ROULEAU CONIQUE, 17X40X13.25 (KOYO)

Price €63.19
#24 91261-ME9-005 i

GASKET SEALING D'OIL, 27X43X7

Price €12.41
#25 94001-080000S i

NUT HEX., 8MM

Price €1.19
#26 94101-08000 i

WASHER PLATE, 8MM

Price €0.73
#27 94111-10000 i

WASHER ELASTIQUE, 10MM

Price €0.88
#28 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#29 95700-0803200 i

BOLT, FLANGE, 8X32

Price €1.66
