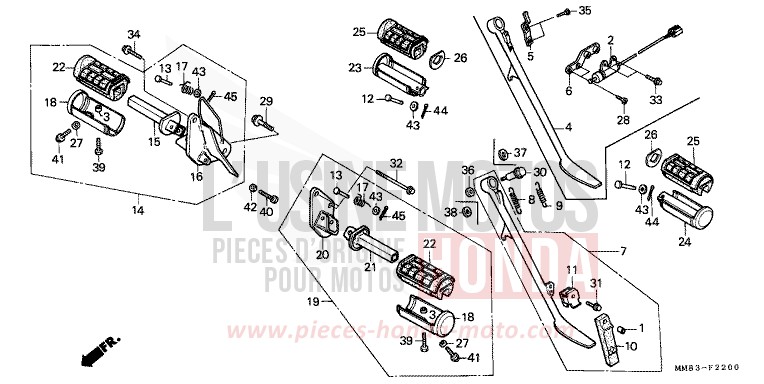

STEP/STAND for Shadow BLACK-Z (NH1Z) from 1988

STEP/STAND for Shadow BLACK-Z (NH1Z) from 1988
Reference
Product name
#1 17202-415-000

COLLAR, AIR CLEANER BRACKET

Contact us
#2 35710-MM8-611

SWITCH ASSY, SIDE STAND

Contact us
#3 40515-413-000

COLLAR, CHAIN CASE

Price €4.51
#4 50530-MM8-610

BAR, SIDE STAND

Contact us
#5 50536-MM8-610

PLATE, ARM

Price €10.57
Contact us
#6 50537-MM8-610

STAY, SIDE STAND SWITCH

Contact us
#7 50540-MM8-770

BAR ASSY, SIDE STAND

Contact us
#8 50541-MK3-000

SPRING, SIDE STAND

Price €14.82
#9 50542-438-000

SUB SPRING, SIDE STAND

Price €9.52
#10 50548-MM8-000

RUBBER, STAND

Contact us
#11 50574-MM8-000

BRACKET, SIDE STAND RUBBER

Contact us
#12 50603-KB4-000

PIN, STEP BAR JOINT

Price €10.28
#13 50603-033-000

PIN, STEP BAR JOINT

Price €6.30
#14 50610-MM8-000

STEP ASSY, R MAIN

Price €262.96
Contact us
#15 50612-MK7-010

BAR COMP, R STEP

Price €97.00
#16 50615-MM8-000

BRACKET COMP, R STEP

Price €262.96
Contact us
#17 50617-MB1-700

SPRING, STEP RETURN

Price €8.96
#18 50619-MK7-010

STOPPER, STEP RUBBER

Price €16.09
#19 50620-MM8-000

STEP ASSY, L MAIN

Contact us
#20 50625-MM8-000

BRACKET COMP, L STEP

Price €127.62
Contact us
#21 50642-MM8-000

BAR COMP, L STEP

Price €93.68
#22 50661-MK7-000

RUBBER, MAIN STEP

Price €27.85
#23 50711-MM8-000

BAR, R PILLION STEP

Price €52.10
#24 50712-MM8-000

BAR, L PILLION STEP

Price €52.10
#25 50713-MK7-000

RUBBER, PILLION STEP

Price €24.30
#26 50714-MK7-000

WASHER, PILLION STEP

Price €7.06
#27 88315-GA7-000

COLLAR, MIRROR SETTING

Price €3.47
#28 90022-MM8-610

SCREW, FLAT, 6X16

Price €2.28
Contact us
#29 90159-438-000

BOLT, SPECIAL FLANGE, 10X60

Price €11.48
#30 90108-MM8-770

BOLT, SIDE STAND PIVOT

Contact us
#31 90109-MM8-000

BOLT, FLANGE, 6X32

Contact us
#32 90116-MM8-000

BOLT, SPECIAL FLANGE, 8X115

Price €9.95
Contact us
#33 90128-MM8-680

BOLT, FLANGE, 6X16

Contact us
#34 90130-MM2-000

BOLT, SPECIAL FLANGE, 10X22

Price €5.27
#35 90164-028-000

SCREW, U-LOCK FLAT, 6X12

Price €5.90
#36 90203-MJ4-000

NUT, SIDE STAND

Price €9.17
#37 90501-MM8-770

WASHER, THRUST, 15MM

Contact us
#38 90502-MF9-710

WASHER, THRUST, 24X10

Price €5.23
#39 92000-060160A

BOLT, HEX, 6X16

Price €1.04
#40 92101-060250B

BOLT, HEX, 6X25

Price €1.92
#41 92501-080140B

BOLT, CAP, 8X14

Price €2.94
#42 94002-060000S

NUT, HEX, 6MM

Price €1.04
#43 94101-08000

WASHER, PLAIN, 8MM

Price €0.72
#45 94201-16150

PIN, SPLIT, 16X15

Price €0.77
