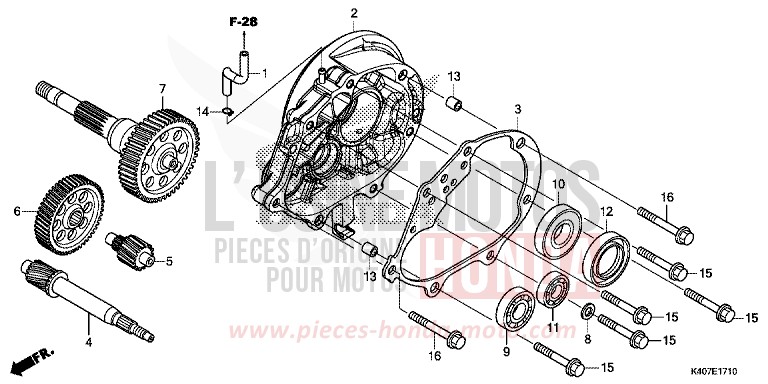

TRANSMISSION for NSS125AD NOIR (NH1) from 2016

TRANSMISSION for NSS125AD NOIR (NH1) from 2016
Reference
Product name
#14 95002-50000 i

CLIP, TUBE (C9)

Price €0.78
#15 95701-0804500 i

BOLT, FLANGE, 8X45

Price €1.74
#1 11211-K40-F00

TUBE, MISSION BREATHER

Price €9.53
#2 21200-K40-F00

CASE COMP, MISSION

Price €179.40
#3 21395-KZR-600

GASKET, TRANSMISSION CASE

Price €17.06
#4 23411-K40-F00

DRIVESHAFT (17T)

Price €158.14
#5 23421-K40-F00

COUNTERSHAFT (13T)

Price €125.09
#6 23422-K40-F00

GEAR, COUNTER (53T)

Price €222.66
#7 23430-K40-F00

GEAR COMP, FINAL (44T)

Price €387.48
#8 90495-MN5-000 i

WASHER, SEALING, 8MM

Price €5.71
#9 91005-KZR-601

BEARING, RADIAL BALL, 6301 (NTN)

Price €9.79
#10 91006-KAB-004 i

BEARING, RADIAL BALL, 6205-2NSG (FUJIKOSHI)

Price €39.13
#11 91006-KZR-601

BEARING, RADIAL BALL, 6201 (NTN)

Price €7.55
#12 91204-K35-J01

OIL SEAL, 34X52X7 (ARAI)

Price €2.39
#13 94301-10120

DOWEL PIN, 10X12

Price €2.08
#16 95701-0805500 i

BOLT, FLANGE, 8X55

Price €2.87
# 31210-KZY-701

FLYWHEEL COMP (MITSUBA)

Price €207.85
# 31220-K40-F01

STATOR COMP

Price €287.41
# 90001-KWR-000

BOLT, SOCKET, 6X18

Price €9.32
# 90439-KWZ-900

WASHER, 12X24X23

Price €4.02
# 94050-12000 i

NUT, FLANGE, 12MM

Price €1.74
# 96700-0602500

BOLT, SOCKET, 6X25

Price €1.50
