DRIVE FACE 🏍️ Forza 125
TRANSMISSION 🏍️ Forza 125

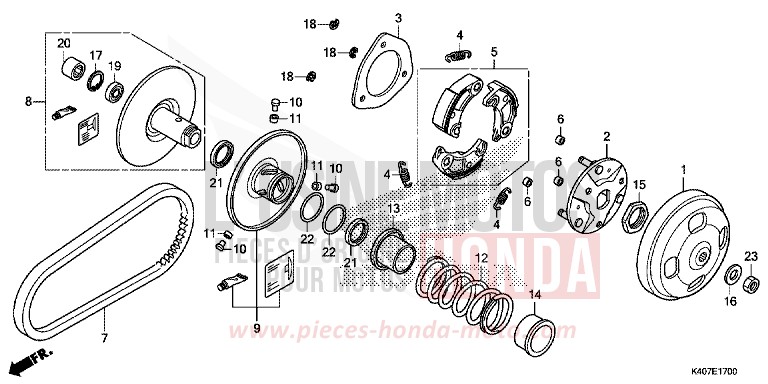

DRIVEN FACE for Forza 125 NOIR (NH1) from 2016

DRIVEN FACE for Forza 125 NOIR (NH1) from 2016
Reference
Product name
#1 22100-KFG-000

OUTER COMP, CLUTCH

Price €140.72
#2 22350-K40-F01

PLATE COMP, DRIVE

Price €64.13
#3 22361-KFG-000

PLATE, CLUTCH SIDE

Price €20.40
#4 22401-KFF-900

SPRING, CLUTCH

Price €5.87
#5 22535-K40-F00

WEIGHT SET, CLUTCH

Price €123.68
#6 22804-GB2-000

DAEMPFUNGSGUMMI, CLUTCH

Price €4.14
#7 23100-K40-F01

BELT, DRIVE

Price €47.28
#8 23205-K40-F00

FACE SET, DRIVEN

Price €144.84
#9 23224-K40-F00

FACE SET, MOVABLE DRIVEN

Price €131.21
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €3.16
#11 23226-KVB-900 i

ROLLER, GUIDE

Price €2.52
#12 23233-KZY-902 i

SPRING, DRIVEN FACE

Price €29.22
#13 23237-K40-F00 i

COLLAR, SEAL

Price €12.19
#14 23238-KWN-900

COLLAR, SPRING

Price €9.04
#15 90202-KN7-670 i

NUT, SPECIAL, 28MM

Price €11.04
#16 90441-GY6-940 i

WASHER, 12.2X29X2.5

Price €9.68
#17 90603-KSV-J10

CIRCLIP, INTERNAL, 28MM

Price €7.91
#18 90605-166-720 i

SPRENGRING, 7MM

Price €6.52
#19 91002-GA7-701 i

RADIAL BALL BEARING, 6902U (NTN)

Price €24.04
#19 91009-KVY-961 i

BEARING, RADIAL BALL, 6902U (NSK)

Price €16.61
#20 91002-KFG-003 i

ROULEMENT A AIGUILLES, 22X29X18

Price €32.00
#21 91211-K44-V01

SEAL, DRIVEN FACE, 34X41X4

Price €5.81
#22 91384-KVB-900 i

O-RING, 388X19

Price €5.58
#23 94030-12200 i

NUT HEX., 12MM

Price €1.42
# 31210-KZY-701

FLYWHEEL COMP (MITSUBA)

Price €207.85
# 31220-K40-F01

STATOR COMP

Price €287.41
# 90001-KWR-000

BOLT, SOCKET, 6X18

Price €9.32
# 90439-KWZ-900

WASHER, 12X24X23

Price €4.02
# 94050-12000 i

FLANGE NUT, 12MM

Price €1.74
# 96700-0602500

BOLT OF SOCKET, 6X25

Price €1.50
