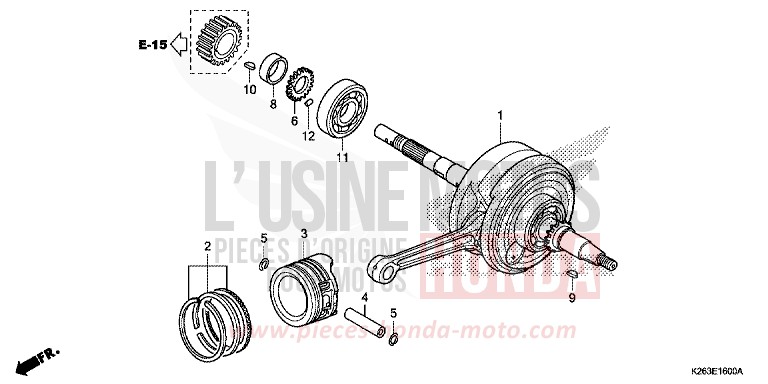

CRANKSHAFT/PISTON for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014

CRANKSHAFT/PISTON for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014
Reference
Product name
# 15431-K26-900

ROTOR, OIL FILTER

Price €117.10
# 15439-K26-901

GASKET, OIL FILTER COVER

Price €3.95
# 15441-K26-900

COVER, OIL FILTER

Price €8.11
# 15661-K26-900

PLATE COMP, OIL SEPARATOR

Price €9.55
# 22100-KPG-T00 i

OUTER COMP, CLUTCH

Price €225.26
# 22115-KPH-900

GUIDE, CLUTCH OUTER

Price €7.45
# 22116-KPG-T00

COLLAR, CLUTCH OUTER

Price €5.44
# 22120-KPG-T00

CENTER COMP, CLUTCH

Price €28.72
# 22201-KPG-T00

DISK, CLUTCH FRICTION

Price €17.40
# 22205-KPG-T00

DISK B, CLUTCH FRICTION

Price €17.40
# 22321-KE8-000

PLATE, CLUTCH

Price €17.40
# 22350-KPG-T00

PLATE, CLUTCH PRESSURE

Price €24.76
# 22361-KPG-T00

PLATE, CLUTCH LIFTER

Price €12.20
# 22401-KPH-900

SPRING, CLUTCH

Price €3.12
# 22847-K26-900

ROD, CLUTCH LIFTER

Price €9.01
# 90050-KPH-900

BOLT, SPECIAL FLANGE, 6X20

Price €3.97
# 90231-087-010 i

NUT, LOCK, 14MM

Price €8.76
# 90231-KM7-700 i

NUT, LOCK, 14MM

Price €7.32
# 90403-KPH-900 i

WASHER, THRUST, 17MM

Price €3.28
# 90432-KPT-A00 i

WASHER, 142X26X3

Price €6.80
# 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
# 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
# 96100-6200000 i

BEARING, RADIAL BALL, 6200

Price €12.66
#1 13000-K26-900 i

CRANKSHAFT COMP

Price €319.72
#2 13011-KYZ-900

RING SET, PISTON (STD) (TPR)

Price €65.30
Contact us
#2 13012-KYZ-900

RING SET, PISTON (STD) (RIKEN)

Price €26.03
#2 13021-KYZ-900 i

RING SET, PISTON (025) (TPR)

Price €26.03
#2 13022-KYZ-900 i

RING SET, PISTON (025) (RIKEN)

Price €26.03
#2 13031-KYZ-900 i

RING SET, PISTON (050) (TPR)

Price €26.03
#2 13032-KYZ-900 i

RING SET, PISTON (050) (RIKEN)

Price €26.03
#2 13041-KYZ-900

RING SET, PISTON (075) (TPR)

Price €45.58
Contact us
#2 13042-KYZ-900

RING SET, PISTON (075) (RIKEN)

Price €24.89
#2 13051-KYZ-900

RING SET, PISTON (100) (TPR)

Price €45.58
Contact us
#2 13052-KYZ-900

RING SET, PISTON (100) (RIKEN)

Price €45.58
#3 13101-KYZ-900

PISTON

Price €49.16
#3 13102-KYZ-901 i

PISTON (025)

Price €49.57
#3 13103-KYZ-901 i

PISTON (050)

Price €49.57
#3 13104-KYZ-901 i

PISTON (075)

Price €53.70
#3 13105-KYZ-901

PISTON (100)

Price €43.68
#4 13111-087-000 i

PIN, PISTON

Price €16.93
#5 13115-GN5-910 i

CLIP, PISTON PIN, 13MM

Price €4.90
#6 15341-KPH-900

GEAR, OIL PUMP DRIVE (19T)

Price €9.28
#8 23125-KPG-T00

COLLAR, PRIMARY DRIVEN

Price €5.16
#9 90741-003-010 i

KEY, WOODRUFF, 4MM

Price €8.05
#10 90741-KGH-900 i

KEY, WOODRUFF, 4MM

Price €8.32
#11 91001-KPH-901

BEARING, RADIAL BALL, 63/22 (FUJIKOSHI)

Price €38.62
#11 91001-KWB-601 i

BEARING, RADIAL BALL, 63/22 (NTN)

Price €24.04
#11 91001-KWS-901

BEARING, RADIAL BALL, 63/22 (NSK)

Price €25.22
#12 94303-03050 i

DOWEL PIN, 3X5

Price €1.92
