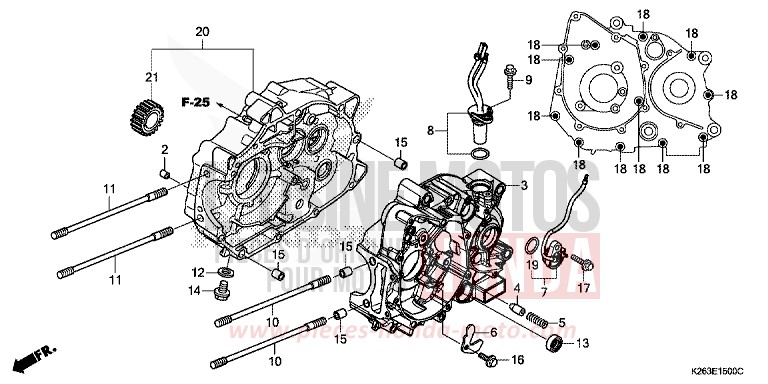

CRANKCASE for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014

CRANKCASE for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014
Reference
Product name
# 15431-K26-900

ROTOR, OIL FILTER

Price €117.10
# 15439-K26-901

GASKET, OIL FILTER COVER

Price €3.95
# 15441-K26-900

COVER, OIL FILTER

Price €8.11
# 15661-K26-900

PLATE COMP, OIL SEPARATOR

Price €9.55
# 22100-KPG-T00 i

OUTER COMP, CLUTCH

Price €225.26
# 22115-KPH-900

GUIDE OF VOLANT CLUTCH

Price €7.45
# 22116-KPG-T00

COLLAR, CLUTCH OUTER

Price €5.44
# 22120-KPG-T00

CENTER COMP, CLUTCH

Price €28.72
# 22201-KPG-T00

DISK, CLUTCH FRICTION

Price €17.40
# 22205-KPG-T00

DISK B, CLUTCH FRICTION

Price €17.40
# 22321-KE8-000

PLATE D'CLUTCH

Price €17.40
# 22350-KPG-T00

PLATE, CLUTCH PRESSURE

Price €24.76
# 22361-KPG-T00

PLATE, CLUTCH LIFTER

Price €12.20
# 22401-KPH-900

SPRING D'CLUTCH

Price €3.12
# 22847-K26-900

ROD, CLUTCH LIFTER

Price €9.01
# 90050-KPH-900

FLANGE BOLT SPECIAL, 6X20

Price €3.97
# 90231-087-010 i

NUT BLOCAGE, 14MM

Price €8.76
# 90231-KM7-700 i

NUT BLOCAGE, 14MM

Price €7.32
# 90403-KPH-900 i

WASHER OF STOPPER, 17MM

Price €3.28
# 90432-KPT-A00 i

WASHER, 14.2X26X3

Price €6.80
#16 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
# 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
# 96100-6200000 i

BEARING, RADIAL BALL, 6200

Price €12.66
#2 11133-KYZ-900

JET, OIL, 10MM

Price €3.42
#3 11200-K26-900

CRANKCASE COMP, L

Price €267.59
#4 11215-KYZ-900 i

PLUG, BEARING PUSH

Price €3.97
#5 11216-KYZ-900

SPRING, BEARING PUSH

Price €3.16
#6 11218-KYZ-900

PLATE, OIL STOPPER

Price €5.71
#7 35759-K26-901

CONTACT ASSY, NEUTRAL SWITCH

Price €34.75
#8 37700-K26-901

SENSOR ASSY, SPEED

Price €92.90
#9 90004-GHB-640 i

BOLT, FLANGE, 6X18 (NSHF)

Price €5.21
#10 90031-KPH-900

STUD OF CYLINDER, 8X203

Price €6.08
#11 90031-KYZ-900

BOLT, CYLINDER STUD, 8X196

Price €6.32
#12 90407-259-000 i

GASKET OF ROBINET OF DRAINAGE, 12.5X20

Price €6.19
#13 91208-KPH-901

GASKET SEALING D'OIL, 116X24X10 (ARAI)

Price €2.11
#14 92800-12000 i

DRAIN BOLT, 12MM

Price €2.70
#15 94301-10120

STUD, 10X12

Price €2.08
#17 95701-0601800 i

FLANGE BOLT, 6X18

Price €1.15
#18 96001-0606000 i

FLANGE BOLT, 6X60

Price €1.74
#19 91301-HP2-671

O-RING, 21X24

Price €5.82
#20 11010-K26-900

CRANKCASE SET, R

Price €543.31
#21 23121-K26-900 i

GEAR A, PRIMARY DRIVE (20T)

Price €61.02
#21 23122-K26-900 i

GEAR B, PRIMARY DRIVE (20T)

Price €62.78
#21 23123-K26-900 i

GEAR C, PRIMARY DRIVE (20T)

Price €60.62
#21 23124-K26-900 i

GEAR D, PRIMARY DRIVE (20T)

Price €62.78
