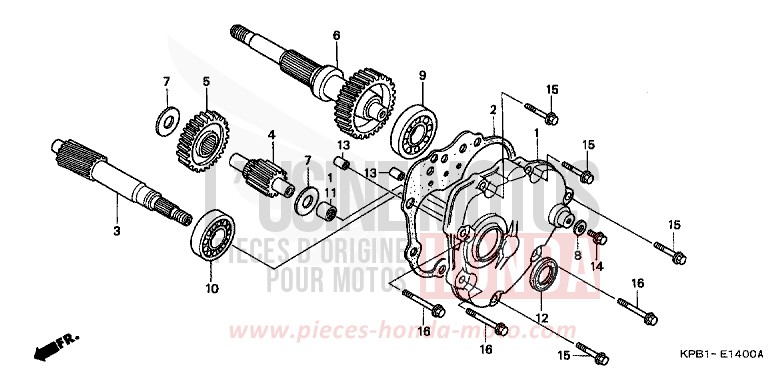

TRANSMISSION for JAZZ CANDY GLORY RED-U (R101) from 2001

TRANSMISSION for JAZZ CANDY GLORY RED-U (R101) from 2001
Reference
Product name
#13 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#1 21300-KPB-000

COVER COMP, TRANSMISSION

Price €209.81
#2 21395-KAB-901 i

GASKET, TRANSMISSION COVER

Price €34.02
#3 23410-KPB-000

DRIVESHAFT COMP (14T)

Price €171.52
#4 23421-KFG-000

COUNTERSHAFT (15T)

Price €104.92
#5 23422-KFG-000

GEAR, COUNTERSHAFT (38T)

Price €121.87
#6 23430-KFG-J00

GEAR COMP, FINAL (38T)

Price €252.20
#7 90411-KM1-000

WASHER, THRUST, 14X32X1

Price €6.13
#8 90474-333-000

WASHER, SEALING, 8MM

Price €6.54
#9 91001-035-008 i

BEARING, RADIAL BALL, 6304 (NTN)

Price €31.07
#10 91005-KPB-003

BEARING, RADIAL BALL, 6205SPL

Price €30.23
#11 91106-KFG-003

BEARING, NEEDLE, 14X22X20

Price €28.46
#12 91251-KPB-003

OIL SEAL, 25X35X5

Price €11.77
#14 95701-0801200 i

BOLT, FLANGE, 8X12

Price €1.25
#15 95701-0803500 i

BOLT, FLANGE, 8X35

Price €1.50
#16 95701-0804500 i

BOLT, FLANGE, 8X45

Price €1.74
