DRIVE FACE 🏍️ JAZZ
TRANSMISSION 🏍️ JAZZ

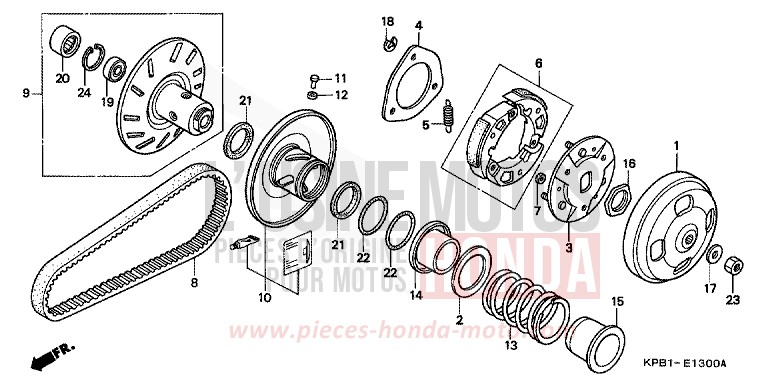

DRIVEN FACE for JAZZ CANDY GLORY RED-U (R101) from 2001

DRIVEN FACE for JAZZ CANDY GLORY RED-U (R101) from 2001
Reference
Product name
#1 22100-KFG-000

OUTER COMP, CLUTCH

Price €140.72
#2 22109-KFG-000

SEAT, DRIVEN SPRING

Price €10.56
#3 22350-KFG-000

PLATE COMP, DRIVE

Price €60.18
#4 22361-KFG-000

PLATE, CLUTCH SIDE

Price €20.40
#5 22401-KFG-000

SPRING, CLUTCH

Price €5.87
#6 22535-KFG-000

WEIGHT SET, CLUTCH

Price €127.24
#7 22804-GB2-000

DAEMPFUNGSGUMMI, CLUTCH

Price €4.14
#8 23100-KFG-003 i

COURROIE DE COMMANDE

Price €145.16
#9 23205-KPB-000

FACE SET, DRIVEN

Price €283.88
#11 23225-KM1-010

FUEHRUNGSSTIFT, ROLLE

Price €6.38
#12 23226-KM1-010 i

FUEHRUNGSROLLE

Price €6.64
#14 23237-KFG-000

COLLAR, SEAL

Price €25.79
#15 23238-KFG-010 i

COLLAR, SPRING

Contact us
#16 90202-KM1-000

SPECIAL NUT, 30MM

Price €11.04
#17 90473-KG8-000

WASHER, PLAIN, 12MM

Price €7.20
#18 90605-166-720 i

SPRENGRING, 7MM

Price €6.52
#19 91002-GA7-701 i

RADIAL BALL BEARING, 6902U (NTN)

Price €24.04
#19 91002-GA7-702 i

RADIAL BALL BEARING, 6902U (FUJIKOSHI)

Price €24.04
#20 91002-KPB-003 i

NEEDLE BEARING, 25X33X18

Price €45.40
#21 91211-KM1-005

SEAL, DRIVEN FACE, 40X47X4

Price €10.98
#22 91352-KM1-003

O-RING, 47X19 (NOK)

Price €6.30
#22 91352-KM1-005

O-RING, 47X19 (ARAI)

Price €6.29
#23 94030-12200 i

NUT HEX., 12MM

Price €1.42
#24 94520-28000 i

INNENSPRENGRING, 28MM

Price €1.74
#10 23224-KPB-640

JEU DE FACE MENEE MOBILE

Price €125.44
#13 23233-KPB-000

RESSORT DE FACE MENEE

Price €35.29
