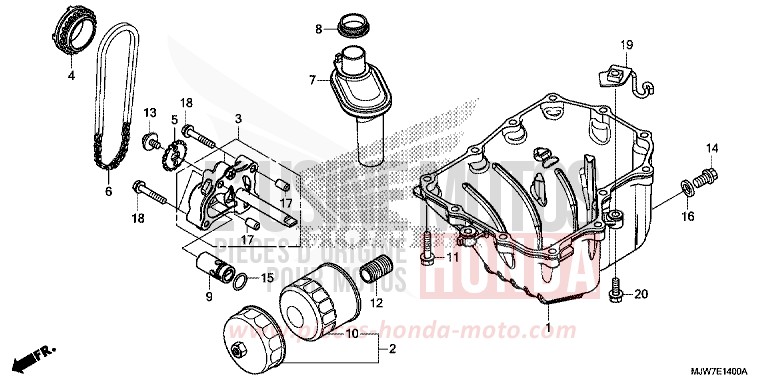

OIL PAN/OIL PUMP for CB500F ROSS WHITE (NH196) from 2016

OIL PAN/OIL PUMP for CB500F ROSS WHITE (NH196) from 2016
Reference
Product name
#1 11210-MJW-J00

PAN, OIL

Price €659.06
#2 15010-MCE-H51

FILTER SET, OIL

Price €16.58
#3 15100-MGZ-J00

PUMP ASSY, OIL

Price €330.52
#4 15131-MGZ-J01

SPROCKET, OIL PUMP DRIVE (22T)

Price €27.66
#5 15134-MGZ-J00

SPROCKET, OIL PUMP DRIVEN (16T)

Price €18.43
#6 15140-MAT-003

CHAIN, OIL PUMP (DID 25H-56LE)

Price €38.10
#7 15150-MGZ-J00

STRAINER COMP, OIL

Price €88.18
#8 15154-MAT-000

PACKING, OIL STRAINER

Price €10.82
#9 15220-MGZ-J00

VALVE ASSY, RELIEF

Price €69.08
#10 15410-MFJ-D01

CARTRIDGE, OIL FILTER (TOYO ROKI)

Price €16.58
#11 90010-MGZ-J00

BOLT, FLANGE, 6X28 (NSHF)

Price €3.74
#12 90019-MGZ-J00

BOSS, OIL FILTER

Price €5.88
#13 90021-MGZ-J00

BOLT-WASHER, 6X12

Price €6.64
#14 90131-883-000

BOLT, DRAIN PLUG, 12X15

Price €4.74
#15 91313-MB0-003

O-RING, 147X22 (ARAI)

Price €7.07
#16 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
#17 94301-08140

DOWEL PIN, 8X14

Price €2.02
#18 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
# 06112-MJW-J00

GASKET KIT B

Price €137.65
# 14560-MGZ-J01

GASKET, TENSIONER HOLE

Price €8.06
# 19226-MGZ-J00

GASKET, WATER PUMP BODY

Price €11.66
# 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
# 90442-397-000

WASHER, SEALING, 6MM

Price €3.95
# 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
# 90463-MEE-000

WASHER, SEALING, 6MM

Price €5.60
# 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
# 91301-ML7-003

O-RING, 481X36 (ARAI)

Price €6.26
# 91302-MB0-013

O-RING, 3295X262 (ARAI)

Price €5.39
# 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
# 91304-MCP-900

O-RING, 23X24

Price €6.12
# 91305-MCJ-751

O-RING, 32X11

Price €3.01
# 91307-035-000

O-RING, 18X3

Price €2.27
# 91309-425-003

O-RING, 244X31 (ARAI)

Price €8.52
