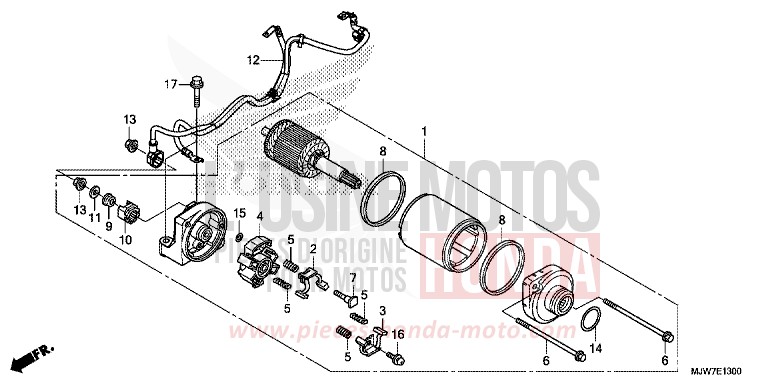

STARTER MOTOR for CB500F ROSS WHITE (NH196) from 2016

STARTER MOTOR for CB500F ROSS WHITE (NH196) from 2016
Reference
Product name
#1 31200-MGZ-J01

STARTER MOTOR ASSY. (MITSUBA)

Price €399.31
#2 31201-MEW-921

CARBON BRUSH ASSY. A

Price €18.88
#3 31202-MEW-921

CARBON BRUSH ASSY. B

Price €18.88
#4 31203-MEW-921

BRUSH HOLDER

Price €13.49
#5 31204-MEW-921

SPRING, BRUSH-CHARBON

Price €6.92
#6 31205-HP5-601

BOLT OF FIXING

Price €7.91
#7 31206-MEW-921

BOLT OF BORNE

Price €6.38
#8 31207-HP5-601

RING

Price €6.80
#9 31208-MEW-921

INSULATOR

Price €5.58
#10 31209-MEW-921

STOPPER, BORNE

Price €12.14
#11 31210-MEW-921

WASHER

Price €5.44
#12 32405-MGZ-J00

CABLE, STARTER MOTOR ET TERRE

Price €54.26
#13 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
#14 91309-425-003 i

O-RING, 24.4X3.1 (ARAI)

Price €12.65
#15 91320-MB0-000

O-RING, 4X2

Price €5.34
#16 93892-0501208 i

SCREW A HEAD A WASHER, 5X12

Price €1.34
#17 95801-0602800 i

FLANGE BOLT, 6X28

Price €1.34
# 06112-MJW-J00

GASKET KIT B

Price €107.35
# 14560-MGZ-J01

GASKET OF HOLE OF TENSIONER

Price €4.92
# 15154-MAT-000

GASKET OF FILTER A STRAINER OIL

Price €11.04
# 19226-MGZ-J00

GASKET OF BODY OF PUMP A WATER

Price €5.56
# 90442-028-000

WASHER SEALING, 8MM

Price €5.71
# 90442-397-000

WASHER SEALING, 6MM

Price €7.07
# 90443-MJ6-000

WASHER OF NEUTRAL

Price €5.02
# 90463-MEE-000

WASHER SEALING, 6MM

Price €6.26
# 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
# 91301-ML7-003

O-RING, 48.1X3.6 (ARAI)

Price €7.22
# 91302-MB0-013 i

O-RING, 32.95X2.62 (ARAI)

Price €6.30
# 91303-KF0-003 i

O-RING, 14.8X2.4 (ARAI)

Price €4.70
# 91304-MCP-900

O-RING, 23X24

Price €7.57
# 91305-MCJ-751 i

O-RING, 3.2X1.1

Price €4.98
# 91307-035-000 i

O-RING, 18X3

Price €1.44
# 91313-MB0-003 i

O-RING, 14.7X2.2 (ARAI)

Price €9.56
# 94109-12000 i

WASHER OF PLUG OF DRAIN, 12MM

Price €1.78
