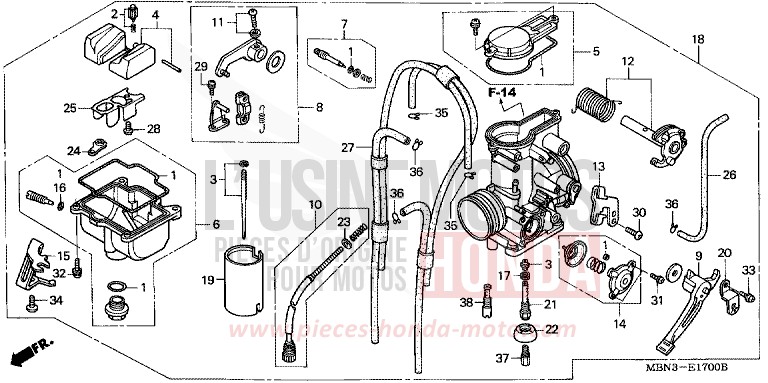

CARBURETOR for XR650R FIGHTING RED (R134) from 2007

CARBURETOR for XR650R FIGHTING RED (R134) from 2007
Reference
Product name
#1 16010-MBN-671

GASKET SET

Price €57.16
#2 16011-MBN-671

VALVE SET, FLOAT

Price €67.06
#4 16013-KA3-741

FLOAT SET

Price €60.31
#5 16014-MBN-671

TOP SET

Price €50.05
Contact us
#6 16015-MBN-671

CHAMBER SET, FLOAT

Price €132.44
Contact us
#8 16018-MBN-672

ARM SET, LINK

Price €135.04
#10 16028-MBN-671

SCREW SET B

Price €43.00
Contact us
#11 16029-KCE-670

SCREW SET C

Price €15.72
#12 16032-MBN-671

LINK SET, THROTTLE

Contact us
#13 16038-MBN-671

PLATE, STAY

Price €12.44
Contact us
#14 16048-MBN-671

VALVE SET, AIR CUT

Price €138.80
#15 16068-MBN-671

PLATE, STAY

Price €14.90
Contact us
#16 16076-ND5-004

O-RING, 13X43

Price €5.23
#17 16091-KAE-000

NUT, HEX

Price €8.75
#19 16112-MBN-671

VALVE, THROTTLE

Price €98.90
Contact us
#20 16119-MBN-671

PLATE, SETTING

Price €10.91
Contact us
#21 16165-MBN-641

HOLDER, NEEDLE JET

Price €40.45
Contact us
#22 16168-KA5-004

HOLDER, JET

Price €39.62
Contact us
#23 16178-ML7-004

WASHER, PLAIN

Price €1.74
#24 16179-HA0-003

BINDER

Price €31.84
#25 16185-MBN-671

PLATE, BUFFER

Contact us
#26 16198-KN5-671

TUBE

Price €9.06
#27 16199-MBN-671

TUBE COMP, AIR VENT

Price €38.30
#28 93500-030061H

SCREW, PAN, 3X6

Price €0.92
#29 93500-030081H

SCREW, PAN, 3X8

Price €0.92
#30 93500-050100H

SCREW, PAN, 5X10

Price €0.73
#31 93892-0401018

SCREW-WASHER, 4X10

Price €0.84
#32 93892-0401618

SCREW-WASHER, 4X16

Price €0.84
#33 93892-0501018

SCREW-WASHER, 5X10

Price €0.78
#34 93892-0501218

SCREW-WASHER, 5X12

Price €1.32
#35 95002-02079

CLIP, TUBE (B7)

Price €0.86
#36 95002-02659

CLIP, TUBE (B65)

Price €0.78
#37 99101-3571250

JET, MAIN, 125

Price €14.50
#37 99101-3571550

JET, MAIN, 155

Price €13.50
#37 99101-3571580

JET, MAIN, 158

Price €13.50
#37 99101-3571600

JET, MAIN, 160

Price €13.50
#37 99101-3571620

JET, MAIN, 162

Price €13.50
Contact us
#37 99101-3571650

JET, MAIN, 165

Price €13.50
#37 99101-3571680

JET, MAIN, 168

Price €13.50
#37 99101-3571700

JET, MAIN, 170

Price €14.50
#37 99101-3571720

JET, MAIN, 172

Price €13.50
#37 99101-3571780

JET, MAIN, 178

Price €13.50
#37 99101-3571800

JET, MAIN, 180

Price €13.50
#37 99101-3571820

JET, MAIN, 182

Price €13.50
#37 99101-3571850

JET, MAIN, 185

Price €13.50
#37 99101-3571880

JET, MAIN, 188

Price €14.50
#37 99101-3571900

JET, MAIN, 190

Price €16.36
#37 99101-3571920

JET, MAIN, 192

Price €13.70
#37 99101-3571950

JET, MAIN, 195

Price €13.50
#38 99103-MAG0600

JET, SLOW, 60

Price €16.81
#38 99103-MAG0620

JET, SLOW, 62

Price €15.40
Contact us
#38 99105-MBN0650

JET, SLOW, 65

Price €20.90
#38 99105-MBN0680

JET, SLOW, 68

Price €21.59
#38 99105-MBN0700

JET, SLOW, 70

Price €17.16
#7 16016-MBN-A31

SCREW SET A

Price €16.52
Contact us
#9 16019-MBN-671

LEVER COMP, CHOKE

Price €34.78
Contact us
#18 16100-MBN-A31

CARBURETOR ASSY (PE78E A)

Contact us
#3 16012-MBN-A31

NEEDLE SET, JET

Price €64.87
Contact us
