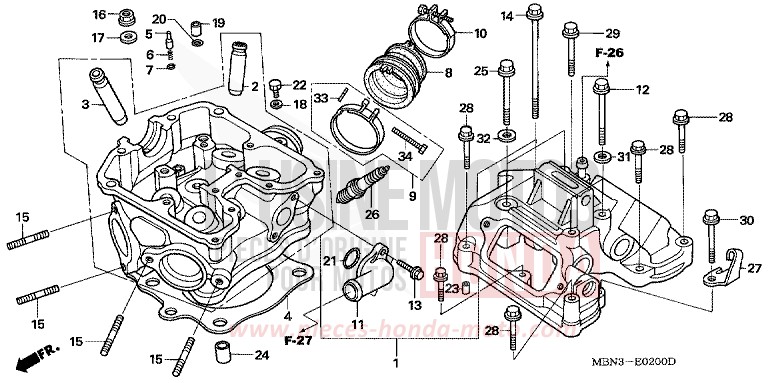

CYLINDER HEAD for XR650R FIGHTING RED (R134) from 2007

CYLINDER HEAD for XR650R FIGHTING RED (R134) from 2007
Reference
Product name
#1 12010-MBN-670

HEAD SET, CYLINDER

Price €2,045.20
#2 12231-MG8-305 i

GUIDE, IN VALVE (OS)

Price €40.30
#3 12233-MG8-305 i

GUIDE, EX VALVE (OS)

Price €61.02
#4 12251-MBN-671 i

GASKET, CYLINDER HEAD

Price €73.08
#5 14125-MBN-670

PLUNGER, CAM SETTING

Price €32.89
#6 14126-MBN-670

SPRING, PLUNGER

Price €8.50
#7 14127-MBN-670

CLIP, 10MM

Price €5.65
#8 16211-MBN-640

INSULATOR, CARBURETOR

Price €36.37
#9 16218-MAT-000

STRIPE B, ISOLATEUR

Price €16.04
#10 16219-MBB-000

BAND, INSULATOR

Price €22.75
#11 19501-MBN-670

JOINT, WATER

Price €41.86
#12 90001-MBN-670

BOLT, SPECIAL, 6X62

Price €8.86
#13 90004-GHB-650

FLANGE BOLT, 6X20 (NSHF)

Price €5.46
#14 90004-GHB-840

BOLT, FLANGE, 6X110 (NSHF)

Price €7.31
#15 90015-MM9-000

STUD, 8X25

Price €5.96
#16 90204-634-000 i

FLANGE NUT, 10MM

Price €7.46
#17 90403-KM9-000 i

WASHER, 10X24

Price €11.82
#18 90452-323-000

WASHER SEALING, 5MM

Price €5.99
#19 90702-MG8-000 i

DOWEL PIN, 6X15

Price €7.36
#20 91305-323-000 i

O-RING, 58X19

Price €6.65
#21 91356-169-003 i

O-RING

Price €6.65
#22 92101-050080H i

BOLT, HEX, 5X8

Price €0.74
#23 94301-08140 i

STUD, 8X14

Price €2.05
#24 94301-14200 i

STUD, 14X20

Price €2.08
#25 95701-0807000 i

FLANGE BOLT, 8X70

Price €2.05
#26 98079-5714E

SPARK PLUG (BKR7E-11) (NGK)

Price €10.39
#26 98079-5715E

SPARK PLUG (K22PR-U11) (DENSO)

Price €13.09
#26 98079-5814E

PLUG, SPARK (BKR8E-11) (NGK)

Price €6.67
#26 98079-5815E

PLUG, SPARK (K24PR-U11) (DENSO)

Price €6.80
#27 12324-MBN-670

RECEIVER, DECOMPRESSION CABLE

Price €16.66
#28 90004-GHB-680 i

BOLT, FLANGE, 6X28 (NSHF)

Price €5.21
#29 90004-GHB-700 i

FLANGE BOLT, 6X35 (NSHF)

Price €5.59
#30 90004-GHB-750

BOLT, FLANGE, 6X60 (NSHF)

Price €6.94
#31 90441-706-000

SEALING WASHER, 6MM

Price €1.02
#32 90442-028-000

WASHER SEALING, 8MM

Price €5.71
#33 16222-MV4-300

NUT, VIERKANT, 5MM

Price €4.88
#34 90005-MM4-000

VERSENKTE BOLT, 5X32

Price €2.83
