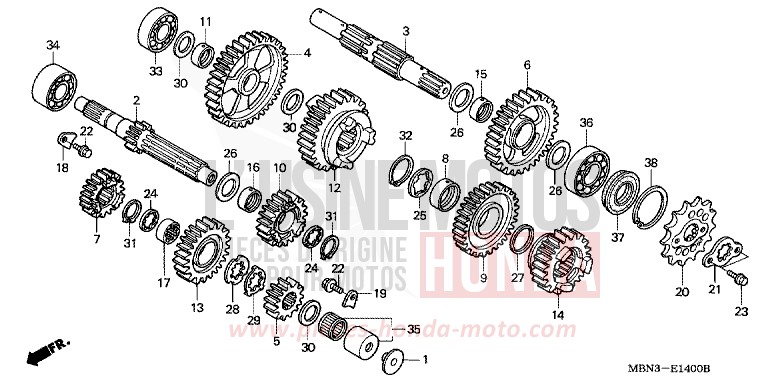

TRANSMISSION for XR650R FIGHTING RED (R134) from 2006

TRANSMISSION for XR650R FIGHTING RED (R134) from 2006
Reference
Product name
#1 15171-KN8-000

GUIDE, LIFTER ROD

Price €23.20
#2 23211-MBN-670

MAINSHAFT (12T)

Price €344.18
Contact us
#3 23220-MBN-671

COUNTERSHAFT COMP

Price €315.62
Contact us
#4 23411-MBN-670

GEAR, COUNTERSHAFT LOW (37T)

Price €271.22
Contact us
#5 23421-MBN-670

GEAR, MAINSHAFT SECOND (16T)

Price €121.87
#6 23431-MBN-670

GEAR, COUNTERSHAFT SECOND (34T)

Price €224.05
#7 23441-MBN-670

GEAR, MAINSHAFT THIRD (18T)

Price €221.70
Contact us
#8 23442-MR5-670

BUSH, 28X31X10

Price €30.01
#9 23451-MBN-670

GEAR, COUNTERSHAFT THIRD (30T)

Price €224.05
Contact us
#10 23461-MBN-670

GEAR, MAINSHAFT FOURTH (21T)

Price €179.68
Contact us
#11 23462-HB3-000

BUSH, 20MM

Price €26.10
#12 23471-MBN-671 i

GEAR, COUNTERSHAFT FOURTH (28T)

Price €308.42
Contact us
#13 23481-MBN-670

GEAR, MAINSHAFT FIFTH (26T)

Price €231.23
#14 23491-MBN-671 i

GEAR, COUNTERSHAFT FIFTH (29T)

Price €289.92
#15 23495-KV3-700 i

COLLAR, 25X28X95

Price €30.04
#16 23495-MB0-000

COLLAR, 25X12

Price €30.91
#17 23512-KY2-000

COLLAR, SPLINE, 25X124

Price €30.59
#18 23521-MBN-670

PLATE A, BEARING SETTING

Price €10.14
Contact us
#19 23531-MBN-670

PLATE B, BEARING SETTING

Contact us
#20 23801-MBN-670

SPROCKET, DRIVE (14T)

Price €89.03
#21 23811-MN8-000

PLATE, FIXING

Price €17.02
#22 90071-MF5-000

BOLT, FLANGE SOCKET, 6X14

Price €6.20
#23 90118-958-003

BOLT, FLANGE, 6X12

Price €7.31
#24 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €7.48
#25 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €7.61
#26 90456-MA6-000

WASHER, THRUST, 25MM

Price €7.61
#27 90458-729-920

WASHER, THRUST, 28MM

Price €5.15
#28 90461-KY2-000

WASHER, SPLINE, 25MM

Price €7.48
#29 90462-KAZ-000 i

WASHER, LOCK, 25MM

Price €12.07
#30 90469-ME5-000

WASHER, THRUST, 20X09

Price €7.20
#31 90601-107-000

CIRCLIP, 25MM

Price €7.91
#32 90603-MN4-000 i

CIRCLIP, 28MM

Price €7.63
#33 91001-GM4-033 i

BEARING, SPECIAL RADIAL BALL (6204) (NTN)

Price €29.38
#34 91003-MBN-671

BEARING, BALL, 5205A

Price €68.86
#35 91022-MG2-791 i

BEARING, NEEDLE, 20MM

Price €46.90
#36 91024-MBN-671

BEARING, BALL, 6305

Price €63.19
#37 91205-MBN-672 i

OIL SEAL, 25X36X5

Price €12.48
#38 94524-40100

CIRCLIP, INTERNAL, 40MM

Price €2.70
