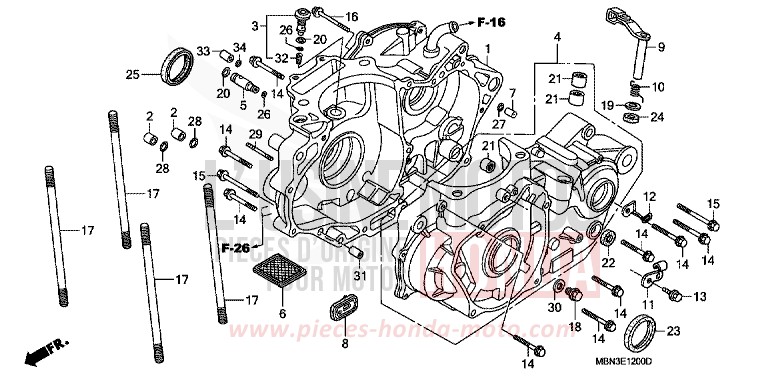

CRANKCASE for XR650R FIGHTING RED (R134) from 2006

CRANKCASE for XR650R FIGHTING RED (R134) from 2006
Reference
Product name
#1 11100-MBN-671

CRANKCASE COMP, R

Price €1,400.17
#2 11134-MBN-670

COLLAR, 12X10

Price €5.51
#3 11145-MBN-670

JET COMP, OIL

Price €49.44
#4 11200-MBN-670

CRANKCASE COMP, L

Price €1,400.17
#5 15220-MBN-670

VALVE ASSY, RELIEF

Price €50.24
#6 15421-428-000

SCREEN, OIL FILTER

Price €37.10
#7 15515-MBN-670

ORIFICE, 15MM

Price €19.03
#8 18601-MBW-003

VALVE COMP, REED

Price €34.63
#9 22810-MBN-670

LEVER COMP, CLUTCH

Price €56.69
#10 22815-MG3-000

SPRING, CLUTCH LEVER

Price €5.29
#11 22821-MBN-670

RECEIVER, CLUTCH CABLE

Price €21.13
Contact us
#12 32111-MBN-670

CLAMPER, AC GENERATOR CORD

Price €10.25
Contact us
#13 90004-GHB-630

BOLT, FLANGE, 6X16 (NSHF)

Price €3.68
#14 90004-GHB-710

BOLT, FLANGE, 6X40 (NSHF)

Price €3.82
#15 90004-GHB-730

BOLT, FLANGE, 6X50 (NSHF)

Price €4.99
#16 90004-GHB-770

BOLT, FLANGE,

Price €7.16
#17 90031-MBN-670

BOLT, STUD, 12X187

Price €12.79
#18 90131-883-000

BOLT, DRAIN PLUG, 12X15

Price €4.74
#19 90525-GC4-700

WASHER, BRAKE ARM

Price €3.32
#20 90751-GK1-003

O-RING, 85X17

Price €3.83
#21 91053-719-005

BEARING, NEEDLE, 12X16X10 (NTN)

Price €25.01
#22 91203-KK3-830

OIL SEAL, 14X22X5

Price €4.13
#23 91203-MBN-671

OIL SEAL, 34X54X6

Price €11.20
#24 91204-KK0-003

OIL SEAL, 12X18X5 (ARAI)

Price €7.61
#25 91207-MBN-671

OIL SEAL, 35X45X6

Price €9.68
#26 91301-473-003

O-RING, 7X17

Price €3.74
#27 91362-VD6-000

O-RING (P7)

Price €1.09
#28 91370-461-000

O-RING, 119X22

Price €5.27
#29 92900-060450B

BOLT, STUD, 6X45

Price €1.33
#30 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
#31 94301-08140

DOWEL PIN, 8X14

Price €2.02
#32 99101-GHB0800

JET, MAIN, 80

Price €10.86
#33 14514-115-300

COLLAR, 6MM

Price €7.09
#34 91319-ME5-003

O-RING, 55X14

Price €4.33
