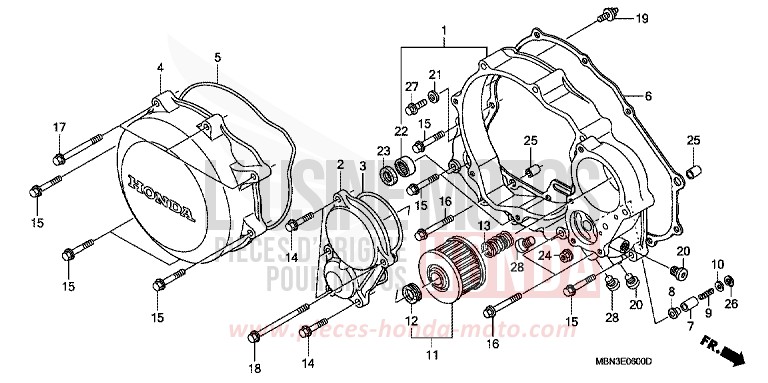

RIGHT CRANKCASE COVER for XR650R FIGHTING RED (R134) from 2005

RIGHT CRANKCASE COVER for XR650R FIGHTING RED (R134) from 2005
Reference
Product name
#1 11330-MBN-670

COVER COMP, R CRANKCASE

Price €474.11
#2 11333-MBN-670

COVER COMP, OIL FILTER

Price €92.94
#3 11335-MBN-670

GASKET, OIL FILTER COVER

Price €10.91
#4 11351-MBN-670

COVER, CLUTCH

Price €79.75
#5 11352-MBN-671 i

GASKET, CLUTCH COVER

Price €17.32
#6 11394-MBN-670

GASKET, R COVER

Price €34.45
#7 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.18
#8 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.86
#9 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.99
#10 15111-MG3-000

SEAT B, SPRING

Price €6.52
#11 15412-KF0-020 i

ELEMENT, OIL FILTER

Price €11.29
#12 15413-MC8-000

RUBBER, FILTER

Price €8.24
#13 15414-KF0-000

HALTEFEDER, OILFILTEREINSET

Price €6.38
#14 90004-GHB-650

FLANGE BOLT, 6X20 (NSHF)

Price €5.46
#15 90004-GHB-670 i

FLANGE BOLT, 6X25 (NSHF)

Price €5.21
#16 90004-GHB-690 i

BOLT, FLANGE, 6X32 (NSHF)

Price €5.46
#17 90004-GHB-750

BOLT, FLANGE, 6X60 (NSHF)

Price €6.94
#18 90004-GHB-800

BOLT, FLANGE, 6X85 (NSHF)

Price €6.94
#19 90041-MBN-670

BOLT, SPECIAL, 6MM

Price €9.11
Contact us
#20 90083-PL3-000

BOLT, SEALING, 10MM

Price €9.11
#21 90441-706-000

SEALING WASHER, 6MM

Price €1.02
#22 91106-KF0-008 i

BEARING, NEEDLE, 20X26X12

Price €24.73
#23 91204-KF0-003 i

OIL SEAL, 20X28X5

Price €7.74
#24 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#25 94301-08140 i

STUD, 8X14

Price €2.05
#26 94520-11000

CIRCLIP, INTERNAL, 11MM

Price €1.04
#27 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#28 12205-KE8-300

BOLT, SEALING, 12MM

Price €14.63
