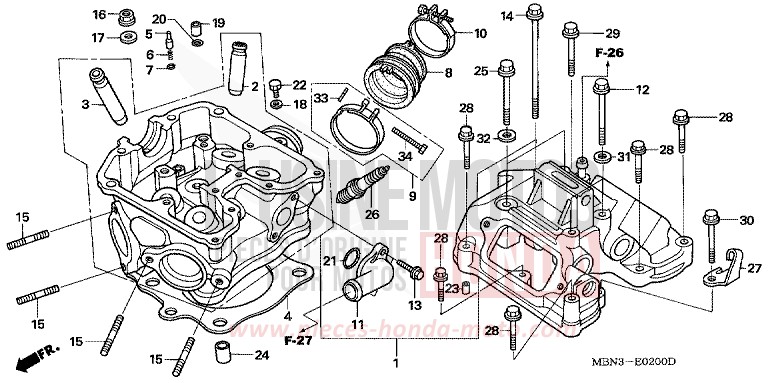

CYLINDER HEAD for XR650R FIGHTING RED (R134) from 2004

CYLINDER HEAD for XR650R FIGHTING RED (R134) from 2004
Reference
Product name
#1 12010-MBN-670

HEAD SET, CYLINDER

Price €2,045.20
#2 12231-MG8-305

GUIDE, IN VALVE (OS)

Price €41.51
#3 12233-MG8-305

GUIDE, EX VALVE (OS)

Price €52.16
#4 12251-MBN-671

GASKET, CYLINDER HEAD

Price €58.70
#5 14125-MBN-670

PLUNGER, CAM SETTING

Price €30.49
#6 14126-MBN-670

SPRING, PLUNGER

Price €12.90
#7 14127-MBN-670

CLIP, 10MM

Price €5.33
#8 16211-MBN-640

INSULATOR, CARBURETOR

Price €40.01
#9 16218-MAT-000

BAND B, INSULATOR

Price €14.74
#10 16219-MBB-000

BAND, INSULATOR

Price €15.91
#11 19501-MBN-670

JOINT, WATER

Price €33.84
#12 90001-MBN-670

BOLT, SPECIAL, 6X62

Price €7.96
#13 90004-GHB-650

BOLT, FLANGE, 6X20 (NSHF)

Price €3.61
#14 90004-GHB-840

BOLT, FLANGE, 6X110 (NSHF)

Price €7.38
#15 90015-MM9-000

BOLT, STUD, 8X25

Price €6.49
#16 90204-634-000

NUT, FLANGE, 10MM

Price €6.38
#17 90403-KM9-000

WASHER, 10X24

Price €6.79
#18 90452-323-000

WASHER, SEALING, 5MM

Price €2.42
#19 90702-MG8-000

DOWEL PIN, 6X15

Price €5.74
#20 91305-323-000

O-RING, 58X19

Price €6.30
#21 91356-169-003

O-RING

Price €5.76
#22 92101-050080H

BOLT, HEX, 5X8

Price €0.73
#23 94301-08140

DOWEL PIN, 8X14

Price €2.02
#24 94301-14200

DOWEL PIN, 14X20

Price €2.04
#25 95701-0807000

BOLT, FLANGE, 8X70

Price €2.02
#26 98079-5714E

PLUG, SPARK (BKR7E-11) (NGK)

Price €9.98
#26 98079-5715E

PLUG, SPARK (K22PR-U11) (DENSO)

Price €12.59
#26 98079-5814E

PLUG, SPARK (BKR8E-11) (NGK)

Price €6.41
#26 98079-5815E

PLUG, SPARK (K24PR-U11) (DENSO)

Price €6.54
#27 12324-MBN-670

RECEIVER, DECOMPRESSION CABLE

Price €15.68
#28 90004-GHB-680

BOLT, FLANGE, 6X28 (NSHF)

Price €3.50
#29 90004-GHB-700

BOLT, FLANGE, 6X35 (NSHF)

Price €4.48
#30 90004-GHB-750

BOLT, FLANGE, 6X60 (NSHF)

Price €7.16
#31 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#32 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
#33 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#34 90005-MM4-000

BOLT, RECESSED, 5X32

Price €3.35
