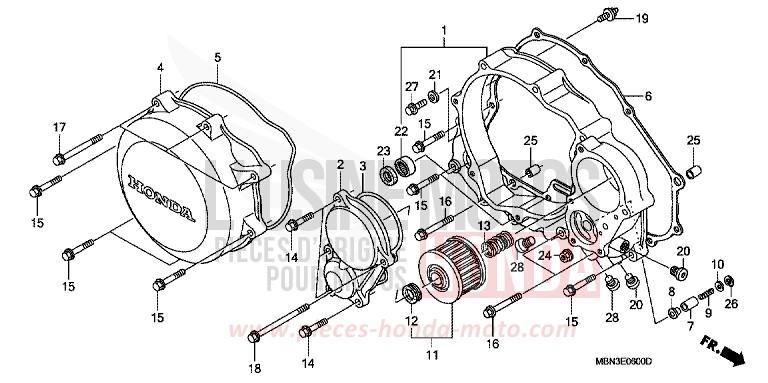

RIGHT CRANKCASE COVER for XR650R FIGHTING RED (R134) from 2003

RIGHT CRANKCASE COVER for XR650R FIGHTING RED (R134) from 2003
Reference
Product name
#1 11330-MBN-670

COVER COMP, R CRANKCASE

Price €409.32
#2 11333-MBN-670

COVER COMP, OIL FILTER

Price €89.80
#3 11335-MBN-670

GASKET, OIL FILTER COVER

Price €6.76
#4 11351-MBN-670

COVER, CLUTCH

Price €125.05
#5 11352-MBN-671

GASKET, CLUTCH COVER

Price €12.43
#6 11394-MBN-670

GASKET, R COVER

Price €23.28
#7 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.79
#8 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.62
#9 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.10
#10 15111-MG3-000

SEAT B, SPRING

Price €4.25
#11 15412-KF0-020

ELEMENT, OIL FILTER

Price €11.11
#12 15413-MC8-000

RUBBER, FILTER

Price €5.21
#13 15414-KF0-000

SPRING, OIL FILTER ELEMENT SETTING

Price €6.13
#14 90004-GHB-650

BOLT, FLANGE, 6X20 (NSHF)

Price €3.61
#15 90004-GHB-670

BOLT, FLANGE, 6X25 (NSHF)

Price €3.56
#16 90004-GHB-690

BOLT, FLANGE, 6X32 (NSHF)

Price €3.83
#17 90004-GHB-750

BOLT, FLANGE, 6X60 (NSHF)

Price €7.16
#18 90004-GHB-800

BOLT, FLANGE, 6X85 (NSHF)

Price €5.46
#19 90041-MBN-670

BOLT, SPECIAL, 6MM

Price €9.11
Contact us
#20 90083-PL3-000

BOLT, SEALING, 10MM

Price €8.33
#21 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#22 91106-KF0-008

BEARING, NEEDLE, 20X26X12

Price €24.25
#23 91204-KF0-003

OIL SEAL, 20X28X5

Price €7.37
#24 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#25 94301-08140

DOWEL PIN, 8X14

Price €2.02
#26 94520-11000

CIRCLIP, INTERNAL, 11MM

Price €1.02
#27 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#28 12205-KE8-300

BOLT, SEALING, 12MM

Price €13.52
