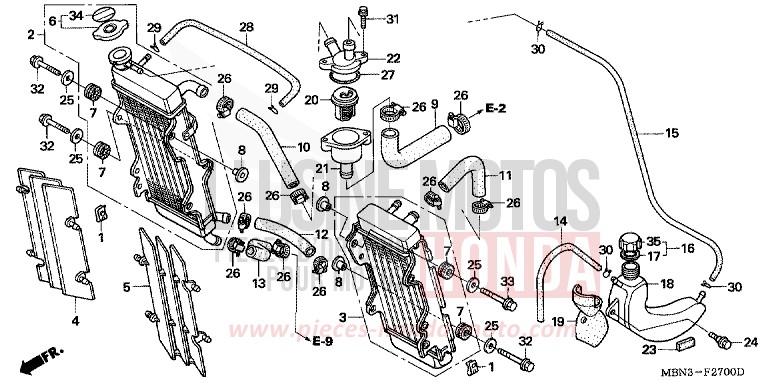

RADIATOR/THERMOSTAT for XR650R FIGHTING RED (R134) from 2001

RADIATOR/THERMOSTAT for XR650R FIGHTING RED (R134) from 2001
Reference
Product name
#1 18354-KS6-000

NUT, CHAMBER SPRING

Price €7.85
#6 19045-MZ1-621 i

CAP COMP. RADIATOR

Price €76.93
#7 19051-KA3-830

MOUNTING RUBBER, RADIATOR

Price €9.20
#8 19052-MAC-680 i

RADIATOR MOUNTING BAND

Price €8.26
#16 19105-MG8-000

ASSY. CAP OF TANK OF SECOURS

Price €26.53
#17 19107-MG8-000

GASKET OF TANK OF RESERVE

Price €5.45
#20 19300-ML7-003 i

ASSY. THERMOSTAT

Price €121.32
#23 81215-MZ0-700

SEAL, SADDLEBAG

Price €3.07
#24 90111-162-000 i

FLANGE BOLT, 6MM

Price €7.55
#25 90403-KA3-830

WASHER, RADIATOR MOUNTING

Price €5.71
#27 91311-KE8-000 i

O-RING, 47.5X2

Price €6.18
#29 95002-01130

CLIP, TUBE (A13)

Price €2.94
#30 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#31 96001-0602007 i

FLANGE BOLT, 6X20

Price €1.42
#33 96001-0602807 i

FLANGE BOLT, 6X28

Price €1.50
#34 19055-MV9-881 i

GASKET, CAP OF RADIATOR (ANGLAIS/FRENCH/JAPONAIS)

Price €12.35
#35 19104-ME9-000

PLUG OF TANK OF RESERVE

Price €20.00
#2 19010-MBN-640

RADIATOR, R

Price €812.09
#3 19015-MBN-670

RADIATOR, L

Price €812.09
#4 19033-MBN-670

GRILLE, R RADIATOR

Price €122.38
#5 19034-MBN-670

GRILLE, L RADIATOR

Price €122.38
#9 19061-MBN-670

HOSE, THERMOSTAT

Price €17.15
#10 19062-MBN-670

HOSE, R UPPER

Price €17.15
#11 19063-MBN-670

HOSE, L UPPER

Price €13.18
#12 19064-MBN-670

HOSE, R LOWER

Price €14.76
#13 19065-MBN-670

HOSE, WATER PUMP

Price €11.72
#14 19104-MBN-670

TUBE, RESERVE TANK BREATHER

Price €13.18
#15 19105-MBN-670

TUBE, RADIATOR BREATHER

Price €17.57
#18 19110-MBN-670

TANK, RADIATOR RESERVE

Price €116.39
#19 19111-MBN-670

GUARD, RESERVE TANK

Price €51.98
#21 19311-MBN-670

CASE, THERMOSTAT

Contact us
#22 19315-MBN-670

COVER, THERMOSTAT

Price €76.02
#26 90670-GHB-650

CLAMP, WATER HOSE

Price €11.08
#28 95001-7523040 i

TUBE, FUEL, 73X230 (95001-75001-60M)

Price €9.13
#32 90005-KGB-610

BOLT, FLANGE, 6X265

Price €5.46
# 24700-MBN-670

PEDAL COMP, GEAR CHANGE

Price €93.74
Contact us
# 28300-MBN-670

ARM ASSY, KICK STARTER

Price €276.22
Contact us
# 28302-MBN-670

JOINT, KICK ARM

Price €119.00
Contact us
# 28306-KAE-770

BOLT, KICK JOINT

Price €17.68
# 28333-124-000

RESSORT DE BUTEE DE KICK DEMARRAGE

Price €6.12
# 35350-MBN-651 i

SWITCH ASSY, RR STOP

Price €53.75
# 35357-MBN-650

SPRING, STOP SWITCH

Price €11.29
# 35358-MBN-650

STAY, STOP SWITCH

Price €36.13
# 46510-MBN-650 i

PEDAL, RR BRAKE

Price €98.90
# 46513-MBN-670 i

SHAFT, BRAKE PIVOT

Price €29.87
# 46514-MBN-670

SPRING, BRAKE PEDAL

Price €14.09
# 50150-MBN-670 i

BRACKET COMP, SIDE STAND

Price €134.60
Contact us
# 50530-MBN-670

BAR, SIDE STAND

Price €121.67
# 50535-KN5-670 i

SPRING, SIDE STAND

Price €12.46
# 90101-KCY-760

SCREW, OVAL, 6X28

Price €3.82
# 90108-KV6-000 i

SCREW OF PIVOT OF SIDE STAND

Price €14.57
# 90113-MBN-670

BOLT, SOCKET, 8X27

Price €6.82
# 90114-MBN-670

BOLT, SOCKET, 10X35

Price €11.74
# 90304-GE8-003 i

U-NUT, 10MM (FUSE RASHI)

Price €6.92
# 90436-VA3-000

WASHER, SPECIAL (22X85X2)

Price €3.72
# 91251-444-000

DUST SEAL, 15X20X25

Price €5.63
# 91303-KA3-731 i

DUST SEAL, 19X25X41 (NOK)

Price €6.67
# 96001-0602200 i

FLANGE BOLT, 6X22

Price €1.50
# 96211-08000 i

STEEL BALL, 8 (1/4)

Price €0.46
