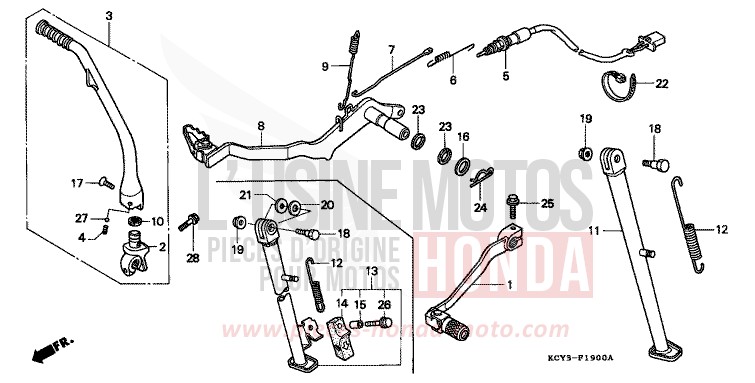

PEDAL/KICK STARTER ARM for XR400R ROSS WHITE (NH196) from 1999

PEDAL/KICK STARTER ARM for XR400R ROSS WHITE (NH196) from 1999
Reference
Product name
#1 24700-KCY-670

PEDAL COMP, GEAR CHANGE

Price €110.48
#2 28241-KCY-761

JOINT, KICK ARM

Price €55.14
#3 28300-KCY-761

ARM ASSY, KICK STARTER

Price €205.55
#4 28333-KK0-000

SPRING, KICK STARTER

Price €3.88
#5 35350-MM9-010

SWITCH ASSY, RR STOP (TOYO)

Price €37.46
#6 35357-MG2-000

SPRING, STOP SWITCH

Price €7.52
Contact us
#7 35358-KW3-000

ROD, STOP SWITCH

Contact us
#8 46500-KCY-650

PEDAL COMP, BRAKE

Price €127.87
Contact us
#9 46514-KCY-670

SPRING, BRAKE PEDAL

Contact us
#10 46525-KK0-003

DUST SEAL, 17X20X25

Price €7.82
#11 50530-KCY-670

BAR, SIDE STAND

Price €96.19
Contact us
#12 50535-KAE-730

SPRING, SIDE STAND

Price €13.25
#16 53312-657-000

WASHER, BUSH

Price €7.60
#17 90101-KCY-760

SCREW, OVAL, 6X28

Price €3.12
#18 90108-KV6-000

SCREW, SIDE STAND PIVOT

Price €11.41
#19 90304-GE8-003

NUT, U, 10MM (FUSE RASHI)

Price €6.53
#22 90650-KV6-003

BAND, WIRE, 95MM

Price €7.55
#23 91251-MT4-000

DUST SEAL, 15X20X3

Price €15.90
#24 94251-16000

PIN, LOCK, 16MM

Price €2.33
#25 95701-0602007

BOLT, FLANGE, 6X20

Price €1.13
#27 96211-08000

BALL, STEEL, 8 (1/4)

Price €0.44
#28 96300-0802800

BOLT, FLANGE, 8X28

Price €1.70
