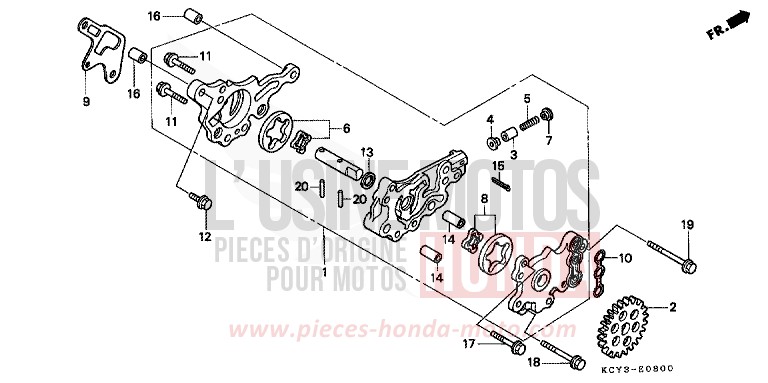

OIL PUMP for XR400R FIGHTING RED (R134) from 1998

OIL PUMP for XR400R FIGHTING RED (R134) from 1998
Reference
Product name
#1 15100-KCY-670

PUMP ASSY, OIL

Price €158.27
Contact us
#2 15105-KCY-670

GEAR, OIL PUMP DRIVEN (27T)

Price €109.04
#3 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.18
#4 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.86
#5 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.99
#6 15110-KCY-305

ROTOR SET A, OIL PUMP

Price €53.52
Contact us
#7 15111-MG3-000

SEAT B, SPRING

Price €6.52
#8 15120-KCZ-305

ROTOR SET, OIL PUMP

Price €42.38
#9 15151-KCY-671

SEAT, OIL PUMP

Price €14.94
#10 15152-KCY-670

SEAL, RUBBER

Price €13.37
#11 90003-GAV-701

BOLT, 6X25

Price €5.96
#12 90004-GHB-630 i

BOLT, FLANGE, 6X16 (NSHF)

Price €5.21
#13 90456-333-000 i

WASHER, THRUST, 11MM

Price €10.07
#14 90701-KCY-670

DOWEL PIN, 8X19

Price €6.23
#15 94201-30200 i

PIN, SPLIT, 30X20

Price €0.74
#16 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#17 95701-0603000 i

BOLT, FLANGE, 6X30

Price €1.42
#18 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#19 95701-0605000 i

BOLT, FLANGE, 6X50

Price €1.66
#20 96220-40158

ROLLER, 4X158

Price €0.40
# 06112-KCY-670 i

GASKET KIT B

Price €243.11
# 11191-KCY-670 i

GASKET, CRANKCASE

Price €34.88
# 11394-KCY-670 i

GASKET, R COVER

Price €40.44
# 11395-KCY-671 i

GASKET, L COVER

Price €28.52
# 91302-KF0-003 i

O-RING, 54X24 (ARAI)

Price €7.57
# 91303-377-000 i

O-RING, 138X25

Price €9.58
# 91305-KF0-003 i

O-RING, 27X2 (ARAI)

Price €6.30
# 91311-KCY-670

GASKET, CLUTCH COVER

Price €14.27
# 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
