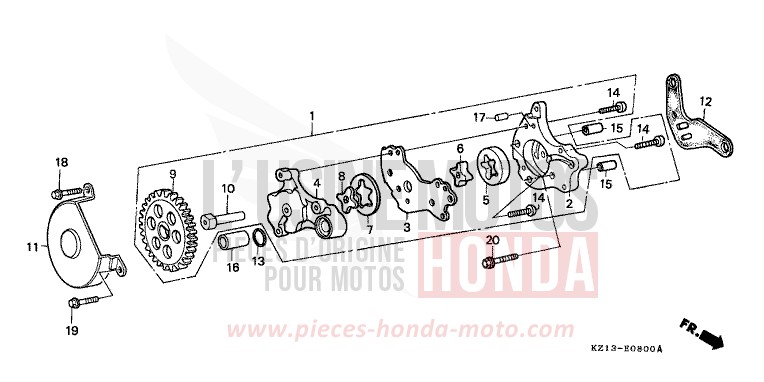

OIL PUMP for XR250R SHASTA WHITE (NH138H) from 1994

OIL PUMP for XR250R SHASTA WHITE (NH138H) from 1994
Reference
Product name
#1 15100-KK1-772

PUMP ASSY, OIL

Contact us
#2 15111-KK0-772

BODY, OIL PUMP

Contact us
#3 15112-KL4-000

PLATE, OIL PUMP

Contact us
#4 15121-KL4-000

COVER, OIL PUMP

Contact us
#5 15122-KK0-000

ROTOR, OIL PUMP OUTER

Price €40.19
#6 15123-KK0-000

ROTOR, OIL PUMP INNER

Price €30.83
#7 15124-KG0-000

ROTOR B, OIL PUMP OUTER

Contact us
#8 15125-KG0-000

ROTOR B, OIL PUMP INNER

Contact us
#9 15140-KK1-000

GEAR, OIL PUMP DRIVEN (30T)

Contact us
#10 15141-KK0-000

SHAFT, OIL PUMP

Contact us
#11 15151-KK0-000

COVER, OIL PUMP GEAR

Contact us
#12 15152-KW3-881

SEAT, OIL PUMP

Price €11.69
Contact us
#13 91303-KK0-003

GASKET, RUBBER

Price €3.34
#14 93500-050160A

SCREW, PAN, 5X16

Price €0.25
#15 94301-08140

DOWEL PIN, 8X14

Price €2.02
#16 94301-10160

DOWEL PIN, 10X16

Price €2.33
#17 94303-04080

DOWEL PIN, 4X8

Contact us
#18 96001-0601200

BOLT, FLANGE, 6X12

Price €1.22
#19 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
#20 96001-0603500

BOLT, FLANGE, 6X35

Price €1.48
