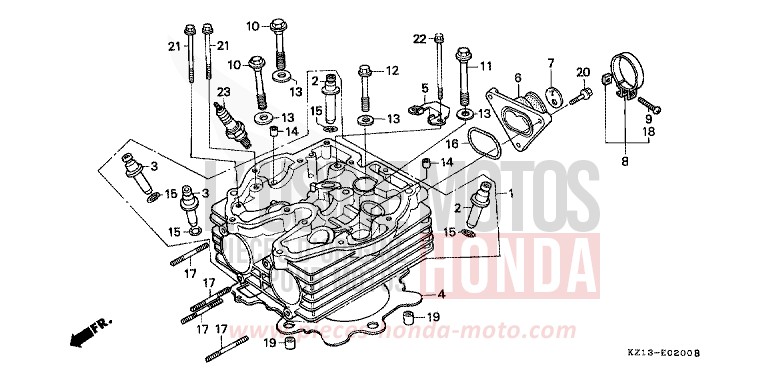

CYLINDER HEAD for XR250R SHASTA WHITE (NH138H) from 1993

CYLINDER HEAD for XR250R SHASTA WHITE (NH138H) from 1993
Reference
Product name
#1 12200-KT1-780

HEAD COMP, CYLINDER

Contact us
#2 12231-KK0-305

GUIDE, IN VALVE

Price €19.81
Contact us
#3 12241-KK0-305

GUIDE, EX VALVE

Price €28.03
Contact us
#4 12251-KV6-003

GASKET, CYLINDER HEAD

Price €45.32
#5 14515-KK0-010

PLATE, TENSIONER SETTING

Price €24.78
#6 16211-KT1-013

INSULATOR, CARBURETOR

Price €55.30
#8 16223-KS5-000

BAND, INSULATOR

Price €23.33
#9 90023-MM5-000

BOLT, RECESSED, 5X28

Price €3.95
#10 90081-KK0-000

BOLT, FLANGE, 10X81

Price €12.68
#11 90081-KR0-000

BOLT, FLANGE, 10X100

Price €13.01
#12 90082-KK0-000

BOLT, FLANGE, 10X72

Price €12.07
#13 90410-KR0-000

WASHER, 10MM

Price €5.09
#14 90701-KK0-000

DOWEL PIN, 8X175

Price €6.66
#15 91301-200-000

O-RING, 10X16

Price €3.67
#16 91302-KR0-003

O-RING, CARBURETOR INSULATOR

Price €11.17
#17 92900-060220E

BOLT, STUD, 6X22

Price €1.48
#19 94301-12200

DOWEL PIN, 12X20

Price €2.04
#20 95701-0602207

BOLT, FLANGE, 6X22

Price €1.32
#21 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
#22 96001-0609000

BOLT, FLANGE, 6X90

Price €2.33
#23 98061-58616

PLUG, SPARK (DPR8Z) (NGK)

Price €11.04
#23 98061-58626

PLUG, SPARK (X24GPR-U) (DENSO)

Price €12.10
#23 98061-59616

PLUG, SPARK (DPR9Z) (NGK)

Price €11.04
#23 98061-59626

PLUG, SPARK (X27GPR-U) (DENSO)

Price €11.15
