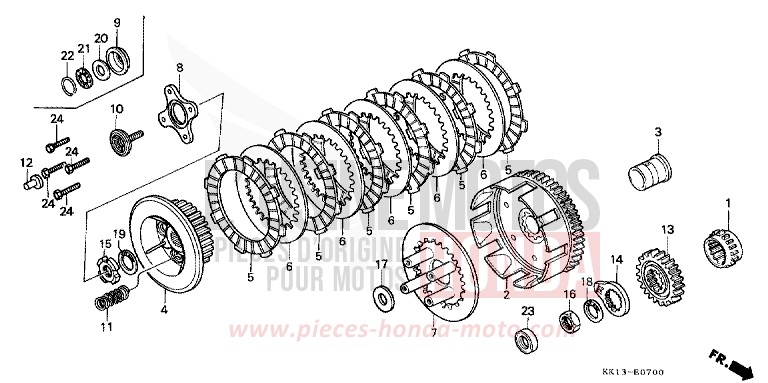

CLUTCH for XR250R SHASTA WHITE (NH138) from 1991

CLUTCH for XR250R SHASTA WHITE (NH138) from 1991
Reference
Product name
#1 14312-KK0-000

SPROCKET, TIMING (19T)

Price €48.56
Contact us
#3 22116-KR0-000

GUIDE, CLUTCH OUTER

Price €21.26
#4 22120-KV6-000

CENTER COMP, CLUTCH

Price €93.77
#5 22201-HA5-670

DISK, CLUTCH FRICTION

Price €16.93
#6 22321-KF0-770

PLATE, CLUTCH

Price €14.94
#7 22350-KF0-000

PLATE, CLUTCH PRESSURE

Price €68.56
#8 22361-KR0-000

PLATE, CLUTCH LIFTER

Contact us
#10 22365-KT2-003

ROD ASSY, CLUTCH LIFTER

Price €25.69
Contact us
#11 22401-KF0-010

SPRING, CLUTCH

Price €5.30
#12 22820-KT1-000

PIN, CLUTCH LIFTER

Contact us
#13 23121-KK1-000

GEAR, PRIMARY DRIVE (20T)

Price €85.75
Contact us
#14 30220-KK0-000

ROTOR, PULSE

Contact us
#15 90231-KR3-000

NUT, LOCK, 16MM

Price €7.48
#16 90235-428-000

NUT, LOCK, 18MM

Price €9.78
#17 90404-KK0-000

WASHER, 20X37X2

Price €5.34
#18 90434-KE1-000

WASHER, 16MM

Price €11.42
#19 90432-KF0-000

WASHER, LOCK

Price €8.54
#23 91203-KK0-003

OIL SEAL, 14X22X5

Price €4.80
#24 90030-KL8-740

BOLT, HEX, 6X25

Price €6.53
#2 22100-KT1-020

OUTER COMP, CLUTCH

Price €478.24
Contact us
