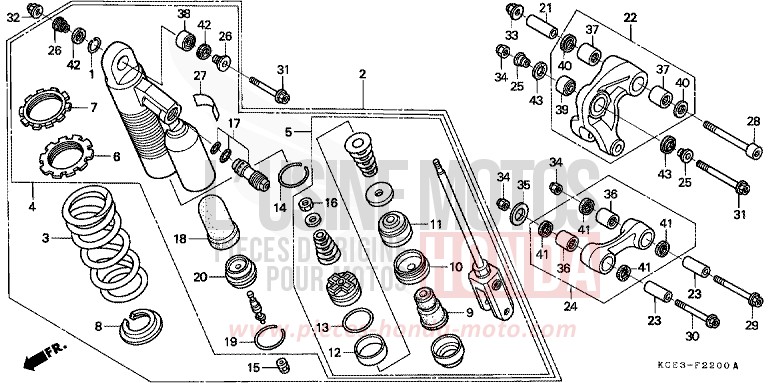

REAR CUSHION for XR250R ROSS WHITE (NH196) from 1999

REAR CUSHION for XR250R ROSS WHITE (NH196) from 1999
Reference
Product name
#1 41405-HA7-670

RING, STOPPER

Price €6.00
#2 52400-KCE-721

CUSHION ASSY, RR (KAYABA)

Price €1,004.58
Contact us
#3 52401-KCE-721

SPRING, RR CUSHION (KAYABA)

Contact us
#4 52410-KCE-721

DAMPER COMP, RR

Contact us
#5 52421-KCE-721

ROD COMP, PISTON

Contact us
#6 52422-KS6-701

SEAT, UPPER SPRING

Price €25.93
#7 52423-KS6-701

NUT, ADJUSTER

Price €33.30
#8 52424-KS6-701

SEAT, SPRING LOWER

Price €15.91
Contact us
#9 52427-KT1-671

RUBBER, BUMPER

Price €17.10
#10 52428-KS6-701

CAP, CASE

Price €18.38
Contact us
#11 52429-KS6-831

CASE COMP, ROD GUIDE

Price €38.89
#12 52431-KS6-831

RING, PISTON

Price €25.16
#13 52432-KS6-831

O-RING, 355X20 (KAYABA)

Price €4.42
Contact us
#14 52435-ML3-791

RING, SNAP (KAYABA)

Price €8.63
Contact us
#15 52436-KA3-731

CAP, AIR VALVE

Price €12.07
#16 52438-KA3-731

NUT, HEX, 12MM

Price €4.37
#17 52440-KCE-671

ADJUSTER, COMPRESSION DAMPING FORCE

Contact us
#18 52451-KZ4-003

BLADDER

Price €29.46
#19 52452-KZ4-003

RING, SNAP

Price €10.31
Contact us
#20 52453-KZ4-003

CAP, BLADDER

Price €59.74
#21 52463-KCZ-000

COLLAR, CUSHION ARM

Price €19.55
#22 52469-KCZ-000

ARM SUB ASSY, CUSHION

Contact us
#23 52473-KZ9-710

COLLAR, CUSHION CONNECTING ROD

Price €13.56
#24 52479-KCZ-000

ROD SUB ASSY, CUSHION CONNECTING

Price €192.38
Contact us
#25 52486-KN5-000

COLLAR, DAMPER

Price €9.94
#26 52486-KS6-004

COLLAR, DAMPER UPPER

Price €13.96
Contact us
#27 87516-KCE-670

LABEL, RR DAMPER (ENGLISH)

Price €11.66
#27 87516-KCE-721

LABEL, RR DAMPER (FRENCH)

Price €12.24
#28 90128-KCZ-000

BOLT, SOCKET, 12X90

Price €15.85
Contact us
#29 90129-KCZ-000

BOLT, FLANGE, 10X74

Price €7.16
Contact us
#30 90151-KF0-000

BOLT, FLANGE, 10X69

Price €12.79
Contact us
#31 90153-KF0-000

BOLT, FLANGE, 10X55

Price €12.58
#32 90304-GE8-003

NUT, U, 10MM (FUSE RASHI)

Price €6.53
#33 90306-KF0-003

NUT, FLANGE, 12MM (FUSE RASHI)

Price €7.40
#34 90306-KZ4-711

NUT, U, 10MM

Price €5.41
#35 90410-HC4-000

WASHER, 10MM

Price €4.80
#36 91071-KV3-005

BEARING, NEEDLE (KOYO)

Price €27.85
#37 91072-MY1-005

BEARING, NEEDLE, 20X26X20

Price €38.51
#38 91077-KA3-831

BEARING, SPHERICAL, 14MM

Price €39.08
Contact us
#39 91077-KN5-004

BEARING, SPHERICAL, 14MM

Price €37.55
#40 91254-KS6-003

DUST SEAL, 20X26X45 (ARAI)

Price €6.50
#41 91262-KV3-831

DUST SEAL, 17X24X5 (ARAI)

Price €6.26
#42 91351-KA3-831

DUST SEAL, RR CUSHION UPPER

Price €10.94
#43 91351-KN5-004

DUST SEAL B

Price €19.91
