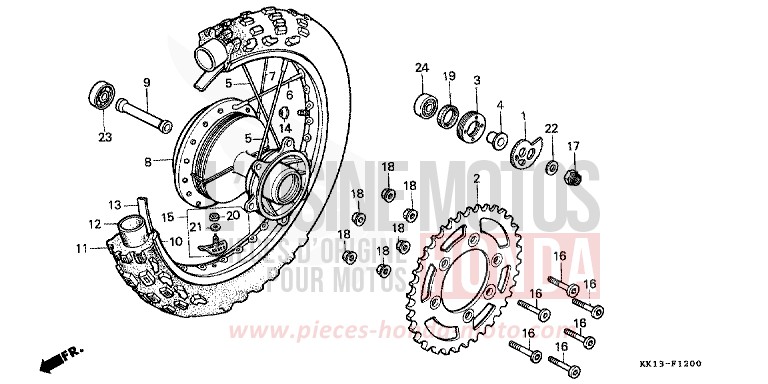

REAR WHEEL (XR250RE/RF/RG/RH/RJ/RK) for XR250R FLASH RED (R119) from 1984

REAR WHEEL (XR250RE/RF/RG/RH/RJ/RK) for XR250R FLASH RED (R119) from 1984
Reference
Product name
#14 42714-KA3-710

CAP, VALVE

Price €16.38
#15 42715-MA0-770 i

STOPPER, BEAD (215)

Price €97.63
#16 90125-KA3-700

SCREW, FLAT, 8X29

Price €13.09
#18 90309-KF0-003 i

NUT, FLANGE, 8MM

Price €10.28
#19 91252-428-000 i

OIL SEAL, 25X40X7

Price €15.06
#20 94001-080000S i

NUT, HEX, 8MM

Price €1.19
#21 94111-08000

WASHER, SPRING, 8MM

Price €0.73
#23 96140-6203010 i

BEARING, RADIAL BALL, 6203U

Price €19.50
#24 96140-6303010 i

BEARING, RADIAL BALL, 6303U

Price €26.62
#1 40545-KK0-000

ADJUSTER, L CHAIN

Contact us
#2 41201-KK0-000

SPROCKET, FINAL DRIVEN (50T)

Contact us
#3 41231-429-000

RETAINER, BEARING

Price €44.93
#4 42312-KF0-000

COLLAR, RR WHEEL

Price €27.97
#5 426A0-KK0-000

SPOKE SET A, 9X182

Contact us
#6 426B0-KK0-000

SPOKE SET A, 9X164

Price €5.24
Contact us
#7 426C0-KK0-000

SPOKE SET A, 9X162

Contact us
#8 42601-KK0-000

HUB COMP, RR WHEEL

Contact us
#9 42620-KK0-000

COLLAR, RR AXLE DISTANCE

Contact us
#10 42701-KK1-003

RIM, RR WHEEL (215X7)

Contact us
#11 42711-KK1-651

TIRE, RR (INOUE)

Contact us
#12 42712-MC4-005

TUBE, TIRE (IRC) (460-17)

Contact us
#13 42713-MA0-005

FLAP, TIRE (IRC)

Price €12.78
#17 90305-MA0-003 i

NUT, AXLE, 16MM

Price €11.42
#22 94111-16000

WASHER, SPRING, 16MM

Price €1.16
