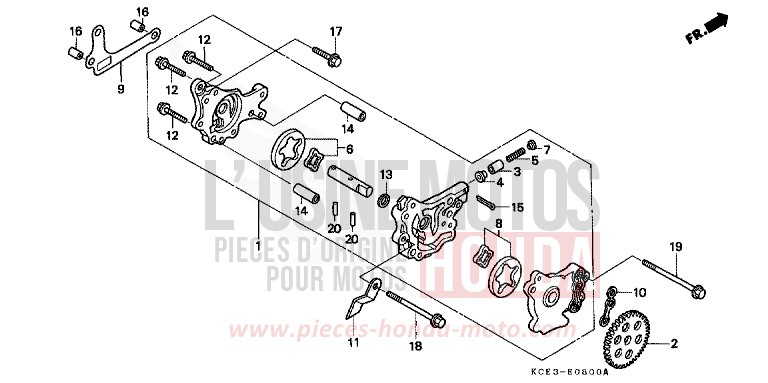

OIL PUMP for XR250R FIGHTING RED (R134) from 2003

OIL PUMP for XR250R FIGHTING RED (R134) from 2003
Reference
Product name
#1 15100-KCZ-950 i

PUMP ASSY, OIL

Price €228.14
Contact us
#2 15105-KCZ-950

GEAR, OIL PUMP DRIVEN (26T)

Price €67.22
Contact us
#3 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.18
#4 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.86
#5 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.99
#6 15110-KCZ-950

ROTOR SET A, OIL PUMP

Price €27.00
Contact us
#7 15111-MG3-000

SEAT B, SPRING

Price €6.52
#8 15120-KCZ-950

ROTOR SET B, OIL PUMP

Price €40.93
Contact us
#9 15151-KCZ-000

SEAT, OIL PUMP

Price €15.06
#10 15152-KCZ-000

SEAL, RUBBER

Price €14.33
#11 15422-KCZ-000

STOPPER, SCREEN

Price €10.04
#12 90014-KCZ-000

BOLT, FLANGE, 5X25 (CT200)

Price €2.83
#13 90456-333-000 i

WASHER, THRUST, 11MM

Price €10.07
#14 90701-KCZ-000

DOWEL PIN, 8X23

Price €8.08
Contact us
#15 94201-30200 i

PIN, SPLIT, 30X20

Price €0.74
#16 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#17 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#18 95701-0604500 i

BOLT, FLANGE, 6X45

Price €1.66
#19 95701-0605000 i

BOLT, FLANGE, 6X50

Price €1.66
#20 96220-40158

ROLLER, 4X158

Price €0.40
