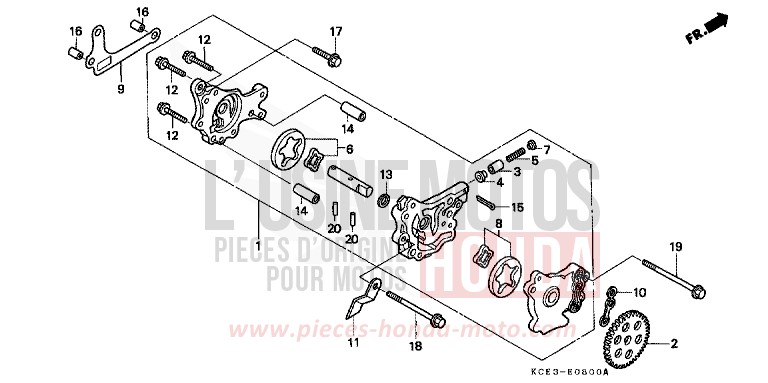

OIL PUMP for XR250R FIGHTING RED (R134) from 1998

OIL PUMP for XR250R FIGHTING RED (R134) from 1998
Reference
Product name
#1 15100-KCZ-950

PUMP ASSY, OIL

Price €228.14
Contact us
#2 15105-KCZ-950

GEAR, OIL PUMP DRIVEN (26T)

Price €67.22
Contact us
#3 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.79
#4 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.62
#5 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.10
#6 15110-KCZ-950

ROTOR SET A, OIL PUMP

Price €27.00
Contact us
#7 15111-MG3-000

SEAT B, SPRING

Price €4.25
#8 15120-KCZ-950

ROTOR SET B, OIL PUMP

Price €40.93
Contact us
#9 15151-KCZ-000

SEAT, OIL PUMP

Price €8.46
#10 15152-KCZ-000

SEAL, RUBBER

Price €11.27
#11 15422-KCZ-000

STOPPER, SCREEN

Price €9.55
#12 90014-KCZ-000

BOLT, FLANGE, 5X25 (CT200)

Price €3.35
#13 90456-333-000

WASHER, THRUST, 11MM

Price €7.07
#14 90701-KCZ-000

DOWEL PIN, 8X23

Price €8.08
Contact us
#15 94201-30200

PIN, SPLIT, 30X20

Price €0.73
#16 94301-08140

DOWEL PIN, 8X14

Price €2.02
#17 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#18 95701-0604500

BOLT, FLANGE, 6X45

Price €1.62
#19 95701-0605000

BOLT, FLANGE, 6X50

Price €1.62
#20 96220-40158

ROLLER, 4X158

Price €0.38
