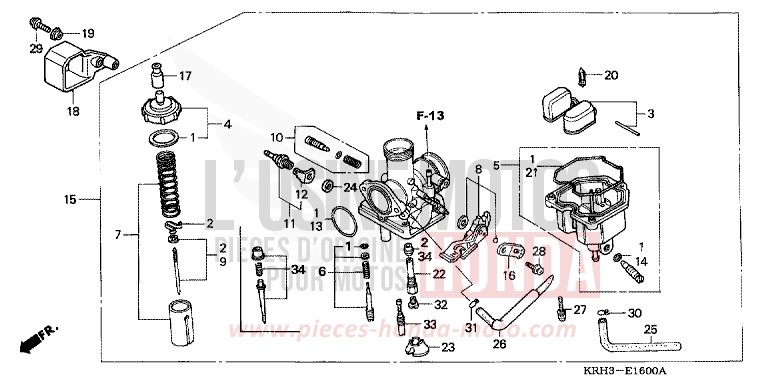

CARBURETOR for XR125L FIGHTING RED (R134) from 2003

CARBURETOR for XR125L FIGHTING RED (R134) from 2003
Reference
Product name
#1 16010-KCH-780 i

GASKET SET

Price €43.84
#2 16012-KRH-D01

NEEDLE SET, JET

Price €35.56
Contact us
#3 16013-KEH-900 i

FLOAT SET

Price €89.53
#4 16014-KGA-901

TOP SET

Price €56.75
#5 16015-KSM-901

CHAMBER SET, FLOAT

Contact us
#6 16016-KCT-690 i

SCREW SET A

Price €34.07
#7 16022-KRH-D01

VALVE SET, THROTTLE

Price €162.38
Contact us
#8 16025-KCH-671 i

LEVER SET, CHOKE

Price €56.75
#9 16027-KSM-901

NEEDLE SET, JET

Price €52.27
#10 16028-KEH-900

SCREW SET B

Price €29.08
#11 16070-GBJ-J01 i

HEATER ASSY

Price €130.63
#12 16073-GBJ-J01

TERMINAL, EARTH

Price €11.32
#13 16075-GHB-B70 i

O-RING, 24X29

Price €13.28
#14 16075-GHB-640

O-RING, 13X43

Price €5.34
#15 16100-KRH-D01

CARBURETOR ASSY (PDN4A A)

Price €486.28
Contact us
#16 16119-440-004

PLATE, STAY

Price €18.22
#17 16148-KB1-921 i

CAP, CABLE SEALING

Price €17.24
#18 16151-KRH-D00

COVER, CARBURETOR HEATER

Price €21.16
#19 16152-KRH-D00

COLLAR, CARBURETOR HEATER COVER

Price €4.88
#20 16155-397-971 i

VALVE COMP, FLOAT

Price €48.18
#21 16163-KCS-920 i

GASKET, FLOAT CHAMBER

Price €13.69
#22 16165-KSM-901

HOLDER, NEEDLE JET

Price €50.95
#23 16168-382-014 i

HOLDER, JET

Price €17.74
#24 16172-KCP-J01

COLLAR, SETTING

Price €6.26
#25 16198-KRE-901

TUBE

Price €15.10
#26 16199-KRE-901

TUBE COMP, AIR VENT

Price €12.29
#27 93892-0401618 i

SCREW-WASHER, 4X16

Price €0.85
#28 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#29 93893-0401218 i

SCREW-WASHER, 4X12

Price €1.00
#30 95002-02079

CLIP, TUBE (B7)

Price €0.88
#31 95002-02089

CLIP, TUBE (B1 8)

Price €0.88
#32 99101-GHB0950 i

JET, MAIN, 95

Price €11.08
#33 99103-KPT0380 i

JET COMP (38X38)

Price €17.15
