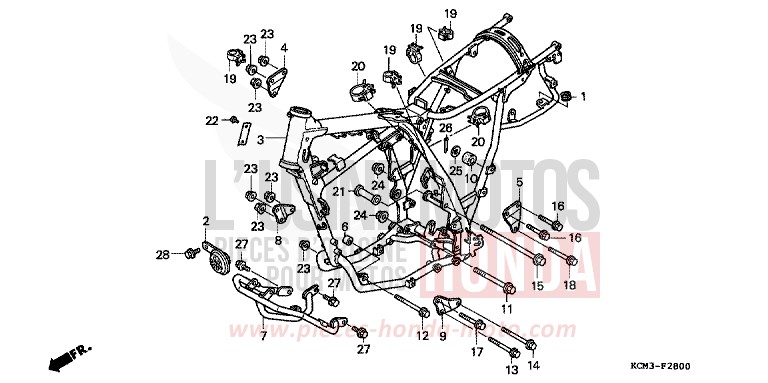

FRAME BODY for XLR125R SHASTA WHITE (NH138K) from 1998

FRAME BODY for XLR125R SHASTA WHITE (NH138K) from 1998
Reference
Product name
#1 19053-MB2-000

GROMMET, RADIATOR

Price €8.99
#2 38120-MR5-661

HORN COMP (LOW)

Price €82.72
#3 50100-KCM-620ZA

BODY COMP, FRAME NH262M (NH262M TERRA SILVER...

Contact us
#4 50138-KCM-000

PLATE, R UPPER ENGINE HANGER

Contact us
#5 50139-KCM-000

PLATE, L UPPER ENGINE HANGER

Contact us
#6 50318-GE2-000

COLLAR, ENGINE MOUNTING

Price €9.86
#7 50360-KCN-000ZB

PIPE COMP, SKID NH262M (NH262M TERRA SILVER...

Contact us
#8 50531-KCN-000

PLATE, R FR ENGINE HANGER

Contact us
#9 50532-KCN-000

PLATE, L FR ENGINE HANGER

Contact us
#10 52175-KCN-000

ROLLER, CHAIN UPPER

Price €20.02
#11 90105-MG3-000

BOLT, FLANGE, 10X110

Price €13.51
#12 90108-GN1-000

BOLT, FLANGE, 8X102

Price €9.19
#13 90112-KT0-670

BOLT, FLANGE, 8X80

Price €7.32
#14 90113-KT0-670

BOLT, FLANGE, 8X87

Price €7.78
#15 90115-KT0-670

BOLT, FLANGE, 10X233

Price €11.78
#16 90118-VM6-000

BOLT, FLANGE, 8X40

Price €5.75
#17 90154-KB7-700

BOLT, FLANGE, 8X73

Price €9.54
#18 90154-MA0-000

BOLT, FLANGE, 8X60

Price €9.49
#19 90690-GHB-641

CLIP, CABLE, 10MM

Price €2.04
#20 90690-GHB-661

CLIP, CABLE, 20MM

Price €2.04
#21 90741-KCN-000

COLLAR, R ENGINE DISTANCE

Contact us
#22 90841-001-000

SCREW, RIVET, 18X5

Price €5.78
#23 94050-08000

NUT, FLANGE, 8MM

Price €2.40
#24 94050-10000

NUT, FLANGE, 10MM

Price €2.88
#25 94102-08700

WASHER, PLAIN, 8MM

Price €0.72
#26 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#27 96300-0801200

BOLT, FLANGE, 8X12

Price €1.49
#28 96300-0801207

BOLT, FLANGE, 8X12

Price €1.48
