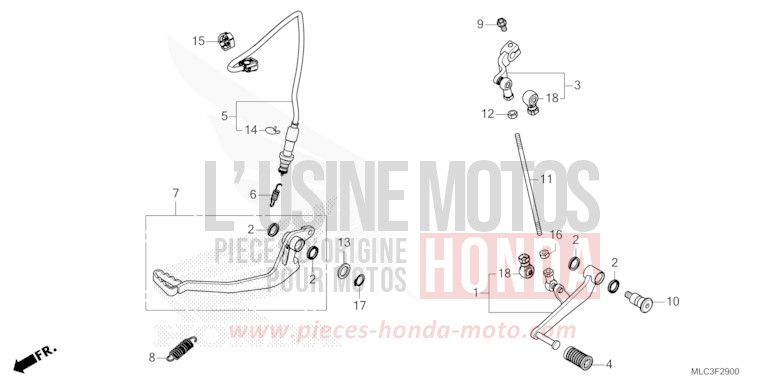

PEDALE for XL750 ROSS WHITE (NH196) from 2023

PEDALE for XL750 ROSS WHITE (NH196) from 2023
Reference
Product name
#1 24705-MLC-D00

PEDAL COMP, GEAR CHANGE

Price €123.72
#2 24706-MK3-770

RUBBER, DUST SEAL

Price €8.11
#3 24710-MLC-D00

ARM COMP, GEAR CHANGE

Price €120.83
#4 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €9.32
#5 35350-MKJ-E51

SWITCH ASSY, RR STOP

Price €101.36
#6 35357-HP0-A00

SPRING, STOP SWITCH

Price €5.23
#7 46500-MLC-D00

PEDAL ASSY, RR BRAKE

Price €121.00
#8 46511-MJF-A00

SPRING, BRAKE PEDAL

Price €8.17
#9 90030-GHB-660

BOLT, FLANGE, 6X20

Price €6.76
#10 90115-MLC-D00

BOLT, CHANGE PIVOT

Price €17.81
#11 90165-MLA-A00

BOLT, TIE ROD

Price €18.61
#12 90301-MGZ-J00

NUT, SPECIAL, 6MM (LEFT HAND THREAD)

Price €5.59
#13 90451-GBL-870

WASHER, 14MM

Price €5.22
#14 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
#15 90690-MEF-800

CLAMP, HARNESS

Price €4.45
#16 94002-060700S

NUT, HEX, 6MM

Price €0.86
#17 94511-14000

CIRCLIP, EXTERNAL, 14MM

Price €0.86
#18 24724-MBW-D21

COVER, DUST

Price €19.44
