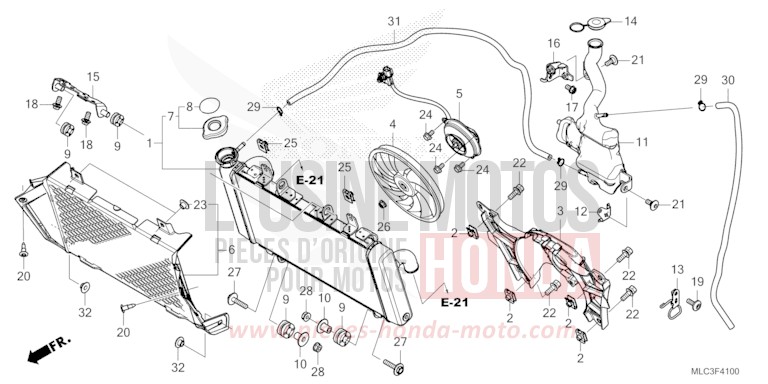

RADIATOR/RESERVE TANK for XL750 ROSS WHITE (NH196) from 2023

RADIATOR/RESERVE TANK for XL750 ROSS WHITE (NH196) from 2023
Reference
Product name
#1 19010-MLB-D01

RADIATOR COMP (TRAD)

Price €887.52
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €7.20
#3 19015-MLB-D01

SHROUD COMP

Price €163.80
#4 19020-MFG-D01 i

FAN COMP, COOLING

Price €125.89
#5 19030-MLB-D01

MOTOR ASSY, FAN

Price €456.52
#6 19032-MLB-D00

GRILLE, RADIATOR

Price €85.99
#7 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €77.52
#8 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €14.70
#9 19051-KA3-830

RUBBER, RADIATOR MOUNTING

Price €9.20
#10 19052-MGH-640 i

COLLAR, RADIATOR MOUNTING

Price €7.48
#11 19101-MLB-D00

TANK, RESERVE

Price €94.42
#12 19103-MLB-D00

STAY, RESERVE TANK

Price €24.50
#13 19107-MLB-D00

STAY, TUBE CLAMP

Price €16.79
#14 19109-KBP-900

CAP, RESERVE TANK

Price €3.97
#15 19130-MLB-D00

STAY, RADIATOR UPPER

Price €37.28
#16 43159-MLB-D00

STAY B, OIL CUP

Price €33.65
#17 90021-GHB-610

BOLT, FLANGE, 6X10 (S-SHDR)

Price €5.34
#18 90026-GHB-620

BOLT, FLANGE, 6X12 (S-NSHF)

Price €5.46
#19 90116-MJM-D40

BOLT, SPECIAL, 6X16

Price €5.59
#20 90116-SP0-003

CLIP, BUMPER SEAL

Price €3.36
#21 90118-MJK-N20

SCREW, SPECIAL, 6X14

Price €8.32
#22 90120-KCR-003

BOLT-WASHER, 6X16

Price €6.82
#23 90129-463-770

COLLAR, REFLECTOR SETTING

Price €6.80
#24 90196-MBB-003

BOLT, FLANGE, 5X10

Price €4.82
#25 90303-MGZ-J40

NUT, CLIP, 6MM

Price €3.16
#26 90315-MK3-003

NUT, SERRATE, 5MM

Price €5.57
#27 93404-0602807 i

BOLT-WASHER, 6X28

Price €1.18
#28 94050-06070 i

NUT, FLANGE, 6MM

Price €1.08
#29 95002-02100 i

CLIP, TUBE (B10)

Price €1.08
#30 95005-5050030 i

TUBE, 5X500 (95005-50001-30M)

Price €7.08
#31 95005-5588020

TUBE, 53X880 (95005-55001-20M)

Contact us
#32 84706-163-670

COLLAR, TAILLIGHT MOUNTING

Price €9.68
