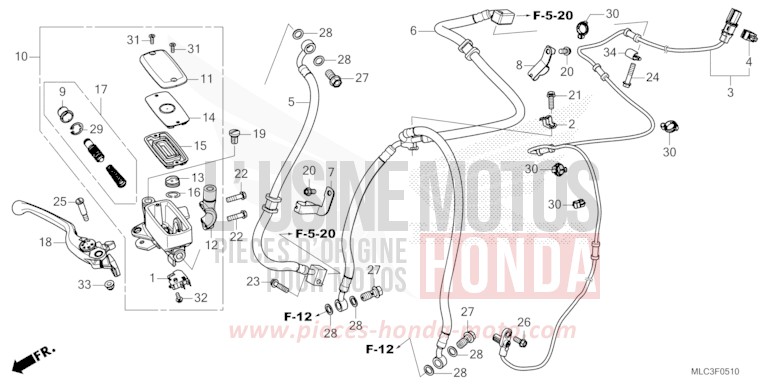

FRONT BRAKE MASTER CYLINDER for XL750 ROSS WHITE (NH196) from 2023

FRONT BRAKE MASTER CYLINDER for XL750 ROSS WHITE (NH196) from 2023
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 38514-MKK-D00

CLAMPER, SENSOR CORD

Price €10.08
#3 38520-MLC-D01

SENSOR, FR WHEEL SPEED

Price €221.14
#4 42524-T5A-003

CLIP, COUPLER (DARK BLUE)

Price €5.84
#5 45125-MLC-D01

HOSE COMP A, FR BRAKE

Price €98.82
#6 45128-MLC-D01

HOSE COMP D, FR BRAKE

Price €213.54
#7 45155-MLC-D00

CLAMPER A, FR BRAKE HOSE

Price €13.28
#8 45156-MLC-D00

CLAMPER B, FR BRAKE HOSE

Price €12.35
#9 45504-410-003

BOOT COMP

Price €15.22
#10 45510-MLC-D01

CYLINDER SUB ASSY, FR MASTER

Price €409.21
#11 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#12 45517-KFR-861

HOLDER, MIRROR

Price €22.22
#13 45518-MEN-J01

SEPARATOR COMP

Price €15.68
#14 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#15 45520-MM5-006

DIAPHRAGM

Price €33.04
#16 45523-KA3-731

RING

Price €5.58
#17 45530-MA4-671

CYLINDER SET, MASTER

Price €76.90
#18 53170-MKK-D01

LEVER ASSY, R HANDLE

Price €75.06
#19 53174-463-770

PLUG, HANDLE LEVER BRACKET

Price €4.49
#20 90021-GHB-620

BOLT, FLANGE, 6X12 (S-SHDR)

Price €5.99
#21 90021-GHB-650

BOLT, FLANGE, 6X18

Price €6.43
#22 90021-GHB-670

BOLT, FLANGE, 6X22 (S-SHDR)

Price €6.76
#23 90021-GHB-680

BOLT, FLANGE, 6X25 (S-SHDR)

Price €6.85
#24 90105-MEJ-D00

BOLT, FLANGE, 6X30

Price €6.95
#25 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#26 90117-MKS-E00

BOLT, FLANGE, 6X14

Price €4.90
#27 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#28 90545-300-000

WASHER, OIL BOLT

Price €6.41
#29 90651-MA5-671

CIRCLIP

Price €5.83
#30 90690-MGS-D81

CLIP, CABLE, 12MM

Price €6.43
#31 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#32 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#33 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#34 38515-K94-T10

CLAMPER, SENSOR CORD

Price €2.81
