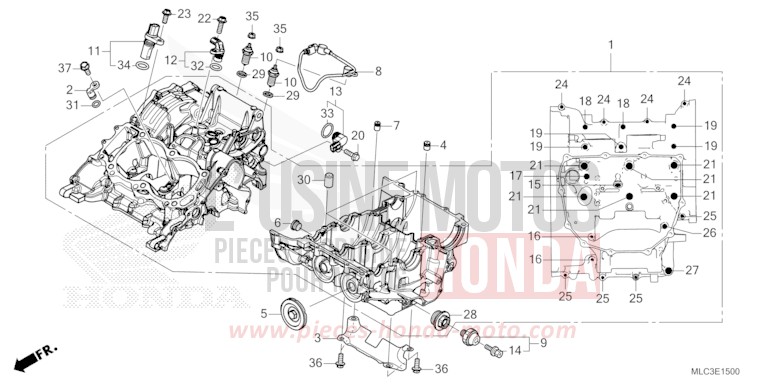

CRANKCASE for XL750 ROSS WHITE (NH196) from 2023

CRANKCASE for XL750 ROSS WHITE (NH196) from 2023
Reference
Product name
#1 11000-MLB-D00

CRANKCASE SET

Price €3,074.22
#2 11141-MLB-D01

JET, OIL

Price €15.35
#3 11203-MLB-D00

PLATE, BAFFLE

Price €19.50
#4 11207-MKS-E00

ORIFICE, 12MM

Price €10.42
#5 11221-MLB-D00

CAP, 20MM

Price €41.78
#6 12206-MBW-000

BOLT, SEALING, 14MM

Price €16.70
#7 15516-MLB-D00

ORIFICE, 17MM

Price €13.52
#8 32106-MLB-D00

SUB HARNESS, NEUTRAL &amp SPINDLE

Price €29.93
#9 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €82.79
#10 35600-MKF-D41

SWITCH ASSY, NEUTRAL

Price €50.26
#11 37500-K26-G82

SENSOR ASSY, CRANK

Price €175.27
#12 37700-K48-A01

SENSOR ASSY, SPEED

Price €153.12
#13 38800-HL8-A01

SENSOR ASSY, ANGLE (350DEGREE)

Price €398.80
#14 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €6.14
#15 90002-RGA-000

BOLT, SEALING, 12X8

Price €8.06
#16 90004-PC9-000

BOLT, FLANGE, 6X90

Price €9.58
#17 90005-MAZ-000

BOLT, SOCKET, 10MM

Price €5.71
#18 90005-MLB-D00

BOLT, FLANGE, 8X45

Price €7.55
#19 90006-K64-N00

BOLT, FLANGE, 8X75

Price €9.32
#20 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €8.03
#21 90015-MKS-E00

BOLT, FLANGE, 10X130

Price €14.20
#22 90026-GHB-650

BOLT, FLANGE, 6X18 (S-NSHF)

Price €5.46
#23 90028-GHB-640

BOLT, FLANGE, 6X16 (S-NSHF)

Price €5.46
#24 90030-GHB-710

BOLT, FLANGE, 6X32

Price €5.96
#25 90030-GHB-750

BOLT, FLANGE, 6X45

Price €6.20
#26 90035-GHB-770

BOLT, FLANGE, 8X55

Price €8.03
#27 90040-GHB-800

BOLT, FLANGE, 10X70

Price €10.70
#28 90048-MFL-000

BOLT, SEALING, 22MM

Price €25.46
#29 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#30 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#31 91301-ZM0-V31

O-RING, 68X19 (ARAI)

Price €1.85
#32 91303-MKH-D21

O-RING B

Price €6.65
#33 91310-MGE-D01

O-RING, 165X25

Price €14.00
#34 91333-PNC-006

O-RING

Price €4.84
#35 94050-04000 i

NUT, FLANGE, 4MM

Price €0.88
#36 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#37 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
