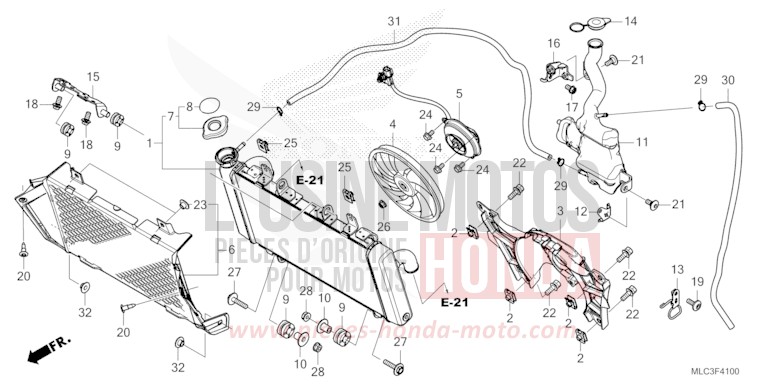

RADIATOR/RESERVE TANK for XL750 MAT IRIDIUM GRAY METALLIC (NHC64) from 2023

RADIATOR/RESERVE TANK for XL750 MAT IRIDIUM GRAY METALLIC (NHC64) from 2023
Reference
Product name
#1 19010-MLB-D01

RADIATOR COMP (TRAD)

Price €929.58
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#3 19015-MLB-D01

SHROUD COMP

Price €98.08
#4 19020-MFG-D01

FAN COMP, COOLING

Price €96.79
#5 19030-MLB-D01

MOTOR ASSY, FAN

Price €434.93
#6 19032-MLB-D00

GRILLE, RADIATOR

Price €90.73
#7 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
#8 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#9 19051-KA3-830

RUBBER, RADIATOR MOUNTING

Price €9.26
#10 19052-MGH-640

COLLAR, RADIATOR MOUNTING

Price €8.17
#11 19101-MLB-D00

TANK, RESERVE

Price €71.74
#12 19103-MLB-D00

STAY, RESERVE TANK

Price €24.91
#13 19107-MLB-D00

STAY, TUBE CLAMP

Price €15.61
#14 19109-KBP-900

CAP, RESERVE TANK

Price €3.49
#15 19130-MLB-D00

STAY, RADIATOR UPPER

Price €41.57
#16 43159-MLB-D00

STAY B, OIL CUP

Price €36.66
#17 90021-GHB-610

BOLT, FLANGE, 6X10 (S-SHDR)

Price €6.02
#18 90026-GHB-620

BOLT, FLANGE, 6X12 (S-NSHF)

Price €4.73
#19 90116-MJM-D40

BOLT, SPECIAL, 6X16

Price €6.12
#20 90116-SP0-003

CLIP, BUMPER SEAL

Price €4.68
#21 90118-MJK-N20

SCREW, SPECIAL, 6X14

Price €7.97
#22 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
#23 90129-463-770

COLLAR, REFLECTOR SETTING

Price €6.12
#24 90196-MBB-003

BOLT, FLANGE, 5X10

Price €2.52
#25 90303-MGZ-J40

NUT, CLIP, 6MM

Price €5.10
#26 90315-MK3-003

NUT, SERRATE, 5MM

Price €4.48
#27 93404-0602807

BOLT-WASHER, 6X28

Price €1.15
#28 94050-06070

NUT, FLANGE, 6MM

Price €1.06
#29 95002-02100

CLIP, TUBE (B10)

Price €1.06
#30 95005-5050030

TUBE, 5X500 (95005-50001-30M)

Price €6.94
#31 95005-5588020

TUBE, 53X880 (95005-55001-20M)

Contact us
#32 84706-163-670

COLLAR, TAILLIGHT MOUNTING

Price €9.36
