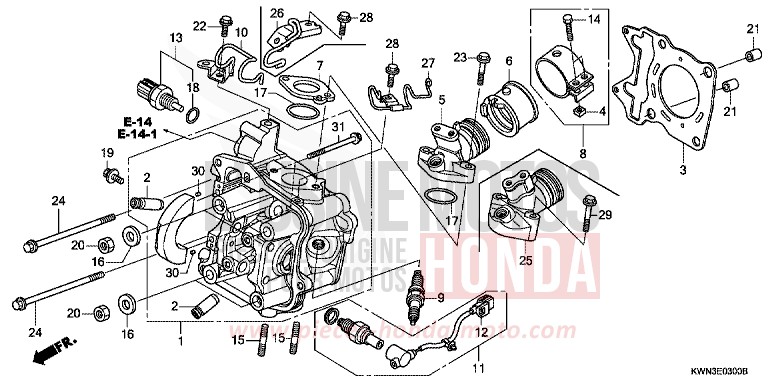

CYLINDER HEAD for PCX 125 PETROL BLUE METALLIC (B183) from 2013

CYLINDER HEAD for PCX 125 PETROL BLUE METALLIC (B183) from 2013
Reference
Product name
#1 12010-KZR-601 i

HEAD ASSY, CYLINDER

Price €275.70
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €24.78
#3 12251-KZR-601

GASKET, CYLINDER HEAD

Price €10.96
#3 12252-KWN-900 i

GASKET, CYLINDER HEAD (OS) (USE FOR 075/100)

Price €10.96
#4 16222-MV4-300

NUT, VIERKANT, 5MM

Price €4.88
#6 17112-KWN-900

INSULATOR, THROTTLE BODY

Contact us
#7 17119-KWN-710

INSULATOR, IN PIPE

Price €9.86
#8 17255-KWN-900

BAND, INSULATOR

Price €4.88
#9 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €11.29
#9 31927-KPH-901

SPARK PLUG D'IGNITION (U22EPR9) (DENSO)

Price €11.12
Contact us
#11 36532-KZR-601

SENSOR, OXYGEN

Price €172.93
#12 36533-KZR-601

CORD COMP, OXYGEN SENSOR

Price €47.93
#13 37870-KZR-601

ASSY. SENSOR, TEMPERATURE WATER (PANASONIC)

Price €28.84
#14 90005-MEJ-000

BOLT CREUX, 5X22

Price €3.70
#15 90004-KGF-910

STUD, 7X17

Price €6.46
#16 90483-KWN-900

WASHER, 8MM

Price €3.28
#17 91301-KRJ-901 i

O-RING, 29X2

Price €7.33
#18 91307-PLC-004

O-RING, 9.5X1.9 (PANASONIC)

Price €5.29
#19 93404-0601200 i

BOLT WITH WASHER, 6X12

Price €1.08
#20 94030-08280

NUT HEX., 8MM

Price €0.79
#21 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#24 95701-0609500

FLANGE BOLT, 6X95

Price €3.06
#25 17111-KWN-710

PIPE, INLET

Price €41.86
Contact us
#26 17120-KWN-710

STAY COMP, FUEL HOSE

Contact us
#27 17219-KWN-710

CLAMPER, BREATHER TUBE

Contact us
#28 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#29 95701-0604000 i

FLANGE BOLT, 6X40

Price €1.25
#30 94303-03050 i

STUD, 3X5

Price €1.92
#31 96001-0608000 i

FLANGE BOLT, 6X80

Price €1.81
