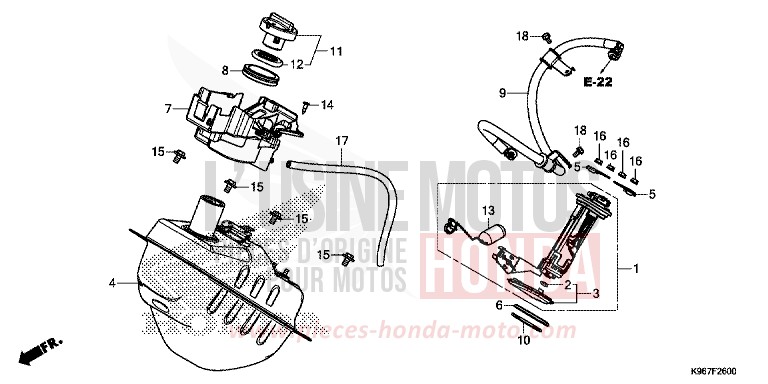

FUEL TANK for PCX 125 PEARL SPLENDOR RED (R369) from 2019

FUEL TANK for PCX 125 PEARL SPLENDOR RED (R369) from 2019
Reference
Product name
#1 16700-K97-T01

PUMP UNIT, FUEL

Price €379.79
#2 16706-GGL-J01

O-RING, 6.8X1.9

Price €8.47
#3 16707-K12-901

FILTER SET

Price €100.78
#4 17510-K96-D00

TANK COMP, FUEL

Price €324.49
#5 17517-GGL-J00

BRACKET, FUELPUMPE

Price €5.21
#6 17518-GHB-603

STAUBDICHTRING (TSUANG HINE INDUSTRIAL)

Price €1.10
#7 17525-K97-T00

TRAY, FUEL

Price €6.12
#8 17527-K35-V00

GASKET EN RUBBER, FUEL

Price €3.20
#9 17570-K97-T01

HOSE COMP, FUEL FEED

Price €97.51
#10 17572-GHB-601

O-RING, PUMP A FUEL (ARAI)

Price €20.76
#11 17620-K35-J01 i

CAP COMP, FUEL FILLER

Price €25.88
#12 17632-383-831 i

GASKET OF PLUG OF REMPLISSAGE FUEL

Price €16.22
#13 37800-K97-T01

FUEL UNIT

Price €48.26
#14 90116-SP0-003

CLIP OF GASKET SEALING OF BUMPER

Price €3.36
#15 93404-0801608 i

BOLT WITH WASHER, 8X16

Price €1.46
#16 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#17 95003-2304231

TUBE, VINYL, 8X12X420 (95003-23001-60M)

Contact us
#18 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
