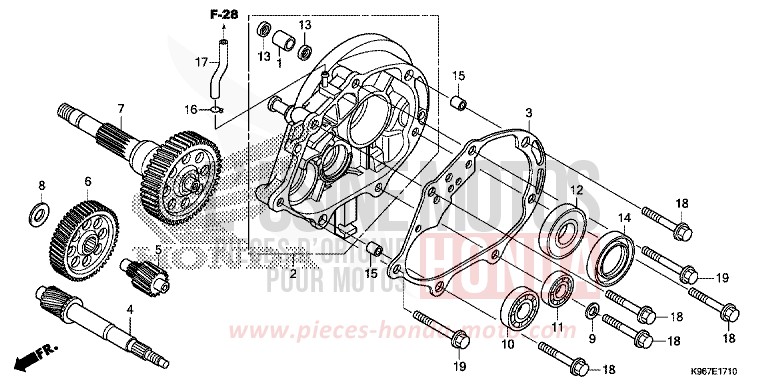

TRANSMISSION for PCX 125 PEARL SPLENDOR RED (R369) from 2019

TRANSMISSION for PCX 125 PEARL SPLENDOR RED (R369) from 2019
Reference
Product name
#1 11204-KGF-900

SLEEVE, RR BRAKE CAM

Price €24.01
#2 21200-K97-T00

CASE COMP, TRANSMISSION

Price €88.19
#3 21395-K97-T02

GASKET, TRANSMISSION CASE (NICHIAS)

Price €3.92
#4 23411-K96-V01 i

SHAFT, DRIVE (16T)

Price €50.78
#5 23421-K96-V01 i

SHAFT, COUNTER (14T)

Price €39.17
#6 23422-K96-V01 i

GEAR, COUNTER (53T)

Price €27.62
#7 23430-K96-V01 i

GEAR COMP, FINAL (45T)

Price €96.74
#8 90452-KGH-900 i

SPECIAL WASHER, 12MM

Price €1.86
#9 90495-MN5-000 i

WASHER SEALING, 8MM

Price €5.71
#10 91004-KZR-601

BEARING, RADIAL BALL, 6202 (NTN)

Price €9.18
#11 91006-KZR-601

RADIAL BALL BEARING, 6201 (NTN)

Price €7.55
#12 91009-KWN-901

BEARING, RADIAL BALL, 6205UU (NTN)

Price €24.36
#13 91201-434-003 i

OIL SEAL, 14X20X32 (ARAI)

Price €6.83
#14 91204-K59-A11

OIL SEAL, 34X52X7 (NOK)

Price €2.39
#15 94301-10120

STUD, 10X12

Price €2.08
#16 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#17 95005-5007530 i

TUBE, 5X75

Price €16.72
#18 95701-0804500 i

FLANGE BOLT, 8X45

Price €1.74
#19 95701-0805500 i

FLANGE BOLT, 8X55

Price €2.87
