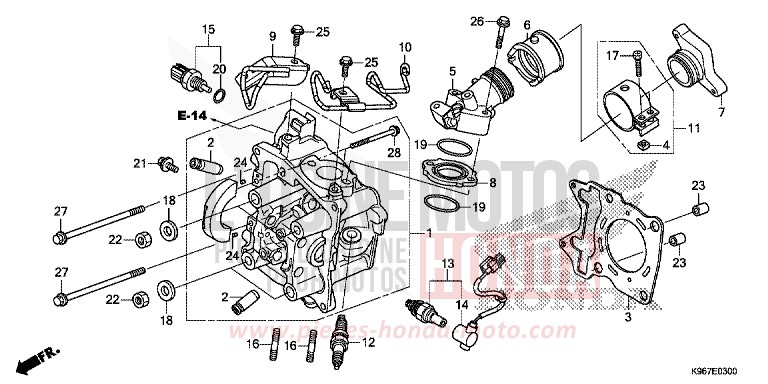

CYLINDER HEAD for WW125 PEARL SPLENDOR RED (R369) from 2019

CYLINDER HEAD for WW125 PEARL SPLENDOR RED (R369) from 2019
Reference
Product name
#1 12010-KZR-603 i

HEAD ASSY, CYLINDER

Price €275.70
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €24.78
#3 12251-K12-901

GASKET, CYLINDER HEAD

Price €9.44
#4 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#5 17111-K96-T00

PIPE, INLET

Price €43.03
#6 17112-KZY-700

INSULATOR, THROTTLE BODY

Price €22.27
#7 17115-K77-V00

PIPE B, INLET

Price €20.90
#8 17119-KZY-700

INSULATOR, IN PIPE

Price €9.32
#9 17120-K97-T00

STAY COMP, HOSE CLAMPER

Price €8.78
#10 17219-K97-T00

CLAMPER, BREATHER TUBE

Price €5.05
#11 17255-KWN-900

BAND, INSULATOR

Price €4.88
#12 31918-K97-T01

PLUG, SPARK (MR8K-9) (NGK)

Price €11.29
#13 36532-K01-611

SENSOR, OXYGEN

Price €120.30
#14 36533-KZR-601

CORD COMP, OXYGEN SENSOR

Price €47.93
#15 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €28.84
#16 90004-KGF-910

BOLT, STUD, 7X17

Price €6.46
#17 90005-MEJ-000

BOLT, RECESSED, 5X22

Price €3.70
#18 90483-KWN-900

WASHER, 8MM

Price €3.28
#19 91301-KRJ-901 i

O-RING, 29X2

Price €7.34
#20 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €5.29
#21 93404-0601200 i

BOLT-WASHER, 6X12

Price €1.08
#22 94030-08280

NUT, HEX, 8MM

Price €0.79
#23 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#24 94303-03050 i

DOWEL PIN, 3X5

Price €1.92
#25 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#26 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#27 95701-0609500

BOLT, FLANGE, 6X95

Price €3.06
#28 96001-0608000 i

BOLT, FLANGE, 6X80

Price €1.81
