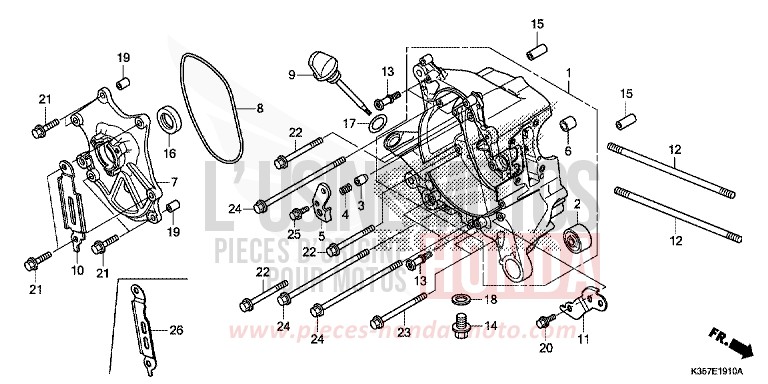

RIGHT CRANKCASE for PCX 125 PEARL SIENA RED (R320) from 2017

RIGHT CRANKCASE for PCX 125 PEARL SIENA RED (R320) from 2017
Reference
Product name
#1 11100-KZR-601

CRANKCASE COMP, R

Price €250.26
#2 11103-KVB-930 i

BUSH, ENGINE HANGER RUBBER

Price €11.51
#3 11114-KWN-900

PLUG, BEARING PUSH

Price €6.52
#4 11116-KZR-600

SPRING, BEARING PUSH

Price €3.16
#5 11117-KWN-901 i

PLATE, BEARING PUSH

Price €3.28
#6 11205-GBC-300

BUSH, MAIN STAND

Price €11.29
#7 11361-KWN-901 i

BASE, STATOR

Price €27.65
#8 11363-KWN-900

GASKET, STATOR BASE

Price €2.47
#9 15651-KWN-900

GAUGE, OIL LEVEL

Price €5.03
#12 90031-KWN-900

BOLT A, STUD, 8X2005

Price €7.07
#13 90036-KZR-600

BOLT, RADIATOR DISTANCE

Price €6.08
#14 90131-883-000 i

BOLT OF DRAIN, 12X15

Price €4.84
#15 90702-KWN-900 i

DOWEL PIN, SPECIAL, 63X10X30

Price €3.97
#16 91201-K35-J01

OIL SEAL, 208X32X6 (ARAI)

Price €1.74
#17 91307-035-000 i

O-RING, 18X3

Price €1.44
#18 94109-12000 i

WASHER OF PLUG OF DRAIN, 12MM

Price €1.78
#19 94301-08100 i

STUD, 8X10

Price €1.81
#20 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#21 95701-0602500 i

FLANGE BOLT, 6X25

Price €1.34
#22 95701-0606500 i

FLANGE BOLT, 6X65

Price €1.74
#23 95701-0608000 i

BOLT, FLANGE, 6X80

Price €1.92
#24 95701-0613000 i

BOLT, FLANGE, 6X130

Price €3.00
#25 96001-0601600 i

FLANGE BOLT, 6X16

Price €1.25
#26 32961-K29-910

CLAMPER, AC GENERATOR CORD

Price €2.46
#11 32962-K35-V00

STAY, ENGINE HARNESS

Price €20.18
