DRIVE FACE 🏍️ PCX 125
TRANSMISSION 🏍️ PCX 125

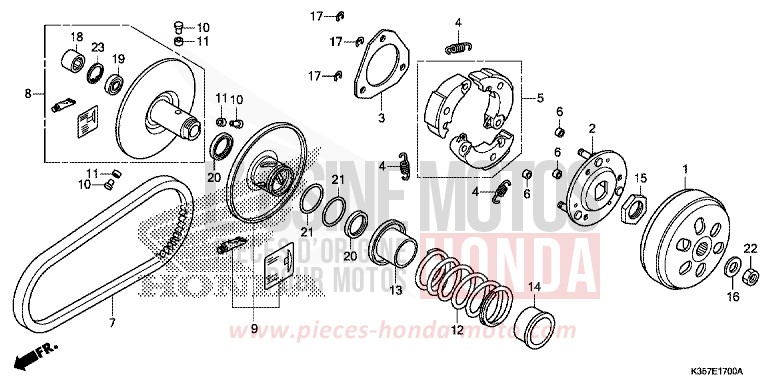

DRIVEN FACE for PCX 125 PEARL SIENA RED (R320) from 2017

DRIVEN FACE for PCX 125 PEARL SIENA RED (R320) from 2017
Reference
Product name
#1 22100-KWN-900 i

OUTER COMP, CLUTCH

Price €69.22
#2 22350-GFM-900

PLATE COMP, DRIVE

Price €25.67
#2 22350-KVB-900

PLATE COMP, DRIVE

Price €20.48
#3 22361-KVB-900

PLATE, CLUTCH SIDE

Price €8.92
#4 22401-KVB-900

SPRING, CLUTCH

Price €2.69
#6 22804-148-000

RUBBER D'DAMPER CLUTCH

Price €3.01
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €3.16
#11 23226-KVB-900 i

ROLLER, GUIDE

Price €2.52
#13 23237-K35-V00

COLLAR, SEAL

Price €9.55
#14 23238-KVB-900

COLLAR, SPRING

Price €8.92
#15 90202-KN7-670 i

NUT, SPECIAL, 28MM

Price €11.04
#16 90441-GY6-940 i

WASHER, 12.2X29X2.5

Price €9.68
#17 90605-166-720 i

SPRENGRING, 7MM

Price €6.52
#18 91001-KCW-003 i

BEARING, NEEDLE, 20X29X18 (NTN)

Price €32.00
#18 91109-KVY-902 i

BEARING, NEEDLE, 20X29X18 (SCHAEFFLER)

Price €18.66
#19 91002-GA7-701 i

RADIAL BALL BEARING, 6902U (NTN)

Price €24.04
#19 91009-KVY-961 i

BEARING, RADIAL BALL, 6902U (NSK)

Price €16.61
#20 91211-KN7-671 i

GASKET OF FACE MENEE, 34X41X4

Price €8.47
#21 91384-KVB-900 i

O-RING, 388X19

Price €5.58
#22 94030-12200 i

NUT HEX., 12MM

Price €1.42
#23 94520-28000 i

INNENSPRENGRING, 28MM

Price €1.74
#5 22535-K35-V00

WEIGHT SET, CLUTCH

Price €108.23
#7 23100-K35-V01

BELT, DRIVE

Price €47.28
#8 23205-K35-V00

FACE SET, DRIVEN

Price €114.32
#9 23224-K35-V00

FACE SET, MOVABLE DRIVEN

Price €71.16
#12 23233-K35-V00

SPRING, DRIVEN FACE

Price €20.09
