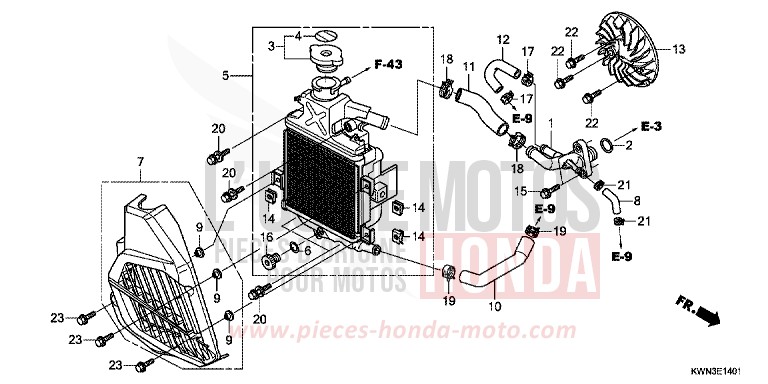

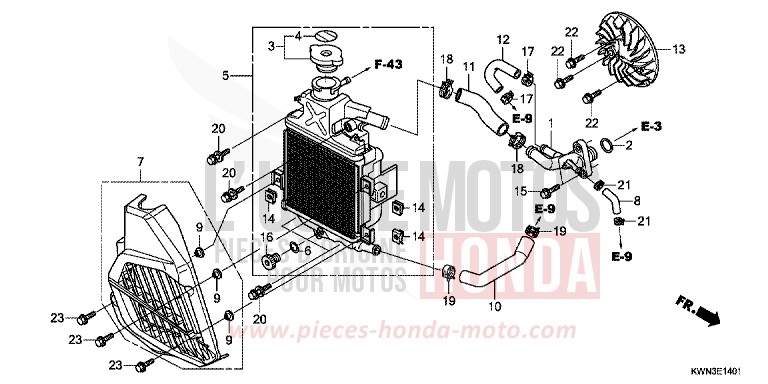

RADIATOR (WW125EX2C/EX2D/EX2E/D) for PCX 125 PEARL SIENA RED (R320) from 2013

RADIATOR (WW125EX2C/EX2D/EX2E/D) for PCX 125 PEARL SIENA RED (R320) from 2013
Reference
Product name
#1 12206-KZR-600

JOINT COMP, WATER HOSE

Price €20.17
#2 12207-KWN-900

O-RING, 154X2

Price €3.18
#3 19037-MCA-G61

CAP COMP. RADIATOR (T.WHEEL)

Price €77.52
#4 19046-MCA-G61

LABEL OF CAP OF RADIATOR (T.WHEEL)

Price €14.70
#5 19100-KWN-781 i

RADIATOR ASSY

Price €249.78
#6 19109-GET-003

SEAL, DRAIN

Price €7.12
#7 19150-KWN-781 i

COVER COMP, RADIATOR

Price €18.53
#8 19332-KWN-900

TUBE, AIR BREATHER

Price €4.61
#9 19416-KEY-900

COLLAR

Price €2.51
#10 19501-KZR-600

HOSE A, WATER

Price €14.04
#11 19502-KZR-600

HOSE B, WATER

Price €14.62
#12 19504-KZR-600

HOSE, BYPASS

Price €10.55
#13 19510-KZR-700

FAN COMP, COOLING

Price €10.55
#14 84601-HA7-670

NUT OF FIXING OF GARDE- BOUE

Price €11.66
#15 90004-GHB-660 i

FLANGE BOLT, 6X22 (NSHF)

Price €5.21
#16 90103-GET-003

BOLT, DRAIN

Price €11.96
#17 90678-MR1-690

CLAMP, TUBE

Price €6.94
#18 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
#19 90701-MF5-003

WATER HOSE CLIP, 21MM

Price €12.35
#20 93401-0602508 i

BOLT-WASHER, 6X25

Price €1.30
#21 95002-4105008

PIPE CLIP (D10.5)

Price €1.50
#22 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#23 96001-0601607 i

FLANGE BOLT, 6X16

Price €1.42
