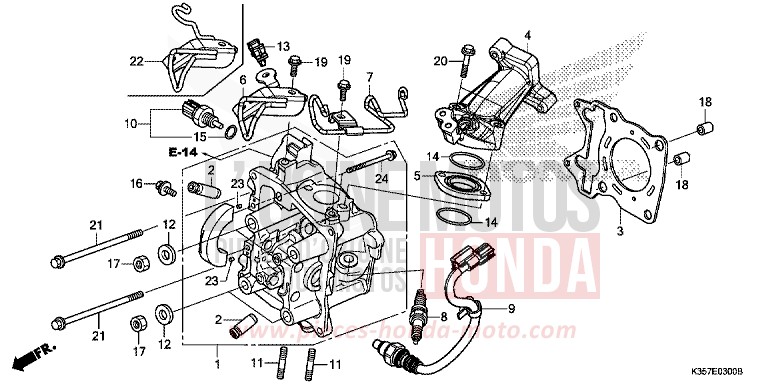

CYLINDER HEAD for WW125 PEARL HAVANA BROWN (YR284) from 2017

CYLINDER HEAD for WW125 PEARL HAVANA BROWN (YR284) from 2017
Reference
Product name
#1 12010-KZR-603

HEAD ASSY, CYLINDER

Price €386.89
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €26.05
#3 12251-K12-901

GASKET, CYLINDER HEAD

Price €17.32
#4 17111-K35-J00

PIPE, INLET

Price €92.35
#5 17119-KWN-710

INSULATOR, IN PIPE

Price €12.50
#7 17219-K35-V00

CLAMPER, BREATHER TUBE

Price €7.79
#8 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €10.90
#9 36532-K66-V01

SENSOR, OXYGEN

Price €144.64
#10 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €68.99
#11 90004-KGF-910

BOLT, STUD, 7X17

Price €5.44
#12 90483-KWN-900

WASHER, 8MM

Price €3.68
#14 91301-KRJ-901

O-RING, 29X2

Price €6.02
#15 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €4.76
#16 93404-0601200

BOLT-WASHER, 6X12

Price €1.06
#17 94030-08280

NUT, HEX, 8MM

Price €0.78
#18 94301-10160

DOWEL PIN, 10X16

Price €2.33
#19 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#20 95701-0604000

BOLT, FLANGE, 6X40

Price €1.22
#21 95701-0609500

BOLT, FLANGE, 6X95

Price €3.00
#22 17120-K36-J00

STAY COMP, HOSE CLAMPER

Price €21.43
#23 94303-03050

DOWEL PIN, 3X5

Price €1.88
#24 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
