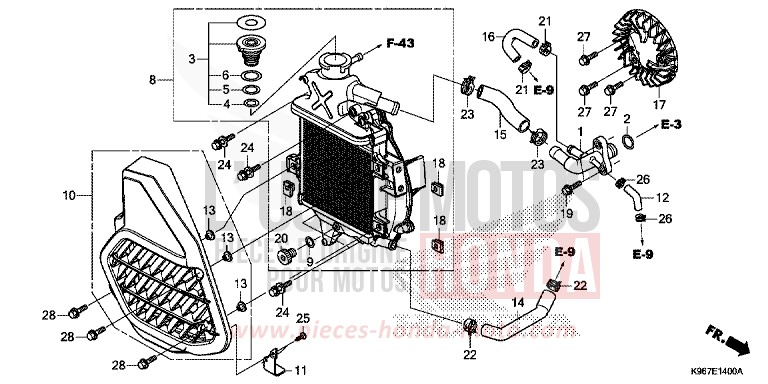

RADIATOR for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019

RADIATOR for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2019
Reference
Product name
#1 12206-KZR-600

JOINT COMP, WATER HOSE

Price €20.17
#2 12207-KWN-900

O-RING, 154X2

Price €3.18
#3 19037-K40-F01

CAP COMP, RADIATOR (TRAD)

Price €38.09
#4 19049-K27-V51

O-RING A

Price €4.73
#5 19051-K27-V51

O-RING B

Price €4.73
#6 19052-K27-V51

O-RING C

Price €90.40
#9 19109-GET-003

SEAL, DRAIN

Price €7.12
#13 19416-KEY-900

COLLAR

Price €2.51
#15 19502-KZR-600

HOSE B, WATER

Price €14.62
#16 19504-KZR-600

HOSE, BYPASS

Price €10.55
#18 84601-HA7-670

NUT OF FIXING OF GARDE- BOUE

Price €11.66
#19 90004-GHB-660 i

FLANGE BOLT, 6X22 (NSHF)

Price €5.21
#20 90103-GET-003

BOLT, DRAIN

Price €11.96
#21 90601-K27-V01

CLAMP, HOSE (D155)

Price €2.09
#22 90602-K27-V01

CLAMP, HOSE (D20)

Price €2.46
#23 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
#24 93401-0602508 i

BOLT-WASHER, 6X25

Price €1.30
#25 93903-24320

SELF-TAPPING SCREW, 4X12

Price €0.64
#26 95002-4105008

PIPE CLIP (D10.5)

Price €1.50
#27 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#28 96001-0601607 i

FLANGE BOLT, 6X16

Price €1.42
#8 19100-K96-T00

RADIATOR ASSY

Price €252.31
#10 19150-K97-T00

COVER COMP, RADIATOR

Price €13.90
#11 19152-K12-900

STAY, HEAT GUARD

Price €3.40
#12 19332-KWN-900

TUBE, AIR BREATHER

Price €4.61
#14 19501-KZR-600

HOSE A, WATER

Price €14.04
#17 19510-K97-T00

FAN COMP, COOLING

Price €9.65
# 19200-K35-D10

PUMP ASSY, WATER

Price €104.38
# 19220-KWN-901 i

COVER COMP, WATER PUMP

Price €36.18
# 19226-KWN-900

GASKET, WATER PUMP COVER

Price €2.47
# 19300-K35-V01

THERMOSTAT ASSY

Price €50.40
# 19310-K35-V01

O-RING

Price €3.65
# 19503-KWN-900

HOSE C, WATER

Price €16.31
# 91302-KWN-900

O-RING, 34X2

Price €3.18
# 94301-08100 i

STUD, 8X10

Price €1.81
# 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
# 95701-0604000 i

FLANGE BOLT, 6X40

Price €1.25
# 96001-0601600 i

FLANGE BOLT, 6X16

Price €1.25
