CYLINDER HEAD COVER 🏍️ PCX 125
CAMSHAFT/VALVE 🏍️ PCX 125

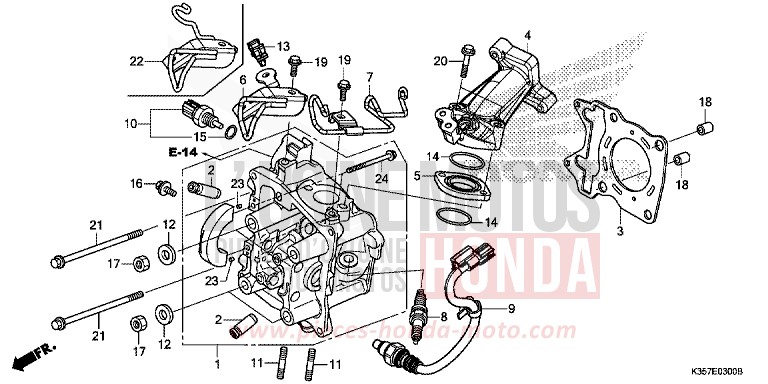

CYLINDER HEAD for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2015

CYLINDER HEAD for PCX 125 MAT CARBONIUM GRAY METALLIC (NHB52) from 2015
Reference
Product name
#1 12010-KZR-602 i

HEAD ASSY, CYLINDER

Price €275.70
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €24.78
#3 12251-K12-901

GASKET, CYLINDER HEAD

Price €9.44
#3 12251-KZR-601

GASKET, CYLINDER HEAD

Price €10.96
#3 12252-KWN-900 i

GASKET, CYLINDER HEAD (OS) (USE FOR 075/100)

Price €10.96
#4 17111-K35-J00

PIPE, INLET

Price €97.61
#5 17119-KWN-710

INSULATOR, IN PIPE

Price €9.86
#6 17120-K35-V00

STAY COMP, HOSE CLAMPER

Price €14.11
#7 17219-K35-V00

CLAMPER, BREATHER TUBE

Price €7.79
#8 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €11.29
#8 31927-KPH-901

SPARK PLUG D'IGNITION (U22EPR9) (DENSO)

Price €11.12
Contact us
#9 36532-K35-V01

SENSOR, OXYGEN

Price €88.07
#10 37870-KZR-601

ASSY. SENSOR, TEMPERATURE WATER (PANASONIC)

Price €28.84
#11 90004-KGF-910

STUD, 7X17

Price €6.46
#12 90483-KWN-900

WASHER, 8MM

Price €3.28
#13 90661-KPH-701

CLIP, PIPE

Price €3.97
#14 91301-KRJ-901 i

O-RING, 29X2

Price €7.33
#15 91307-PLC-004

O-RING, 9.5X1.9 (PANASONIC)

Price €5.29
#16 93404-0601200 i

BOLT WITH WASHER, 6X12

Price €1.08
#17 94030-08280

NUT HEX., 8MM

Price €0.79
#18 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#19 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#20 95701-0604000 i

FLANGE BOLT, 6X40

Price €1.25
#21 95701-0609500

FLANGE BOLT, 6X95

Price €3.06
#23 94303-03050 i

STUD, 3X5

Price €1.92
#24 96001-0608000 i

FLANGE BOLT, 6X80

Price €1.81
