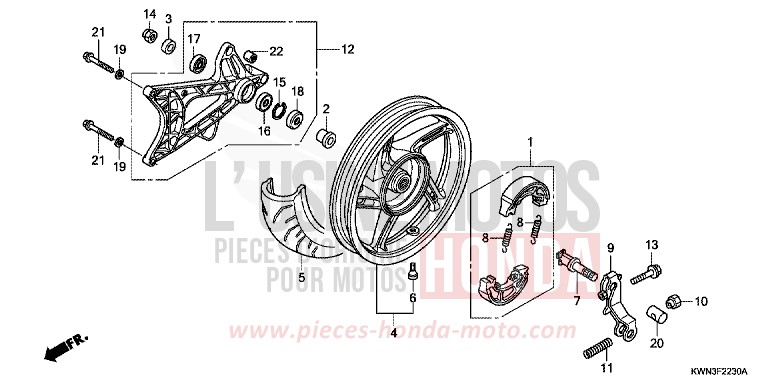

REAR WHEEL/SWINGARM for PCX 125 CANDY ROSY RED (R340) from 2012

REAR WHEEL/SWINGARM for PCX 125 CANDY ROSY RED (R340) from 2012
Reference
Product name
#1 06430-KWN-900

SHOE SET, BRAKE (JB)

Price €41.53
#2 42311-KWN-900

COLLAR, RR WHEEL SIDE

Price €11.78
#3 42312-KWN-700

COLLAR B, RR WHEEL SIDE

Price €5.82
#4 42650-KWN-710ZB i

WHEEL SUB ASSY, RR NH303M (NH303M MAT AXIS GRAY...

Price €467.53
#5 42711-KWN-781 i

TIRE, RR (DUNLOP) (100/90-14 M/C 57P)

Price €190.79
#5 42711-KWN-901 i

TIRE, RR (IRC) (100/90-14 M/C 57P)

Price €203.10
#6 42753-GM9-743 i

VALVE OF RIM (IRC)

Price €18.61
#6 42753-KWF-901 i

VALVE, RIM (TRITON)

Price €6.80
#7 43141-KWN-930

CAM, RR BRAKE

Price €15.18
#8 43151-329-000 i

SPRING OF MACHOIRES OF BRAKE

Price €7.45
#9 43410-KWN-900

ARM, RR BRAKE

Price €9.30
#10 43459-GN5-760 i

NUT, BRAKE ROD ADJUSTING

Price €3.00
#11 43472-KVB-900

SPRING, RR BRAKE ARM

Price €3.16
#12 52100-KWN-710

SWINGARM ASSY

Price €163.51
#13 90112-KVB-900 i

BOLT, FLANGE, 6X32

Price €2.98
#14 90305-KWN-701

U-NUT, 16MM

Price €9.14
#15 90651-KZR-601

CIRCLIP, INTERNAL, 40MM (TOPY FASTENERS)

Price €3.97
#15 94520-40000

CIRCLIP, INTERNAL, 40MM

Price €2.08
#16 91051-KZR-601 i

BEARING, RADIAL BALL, 6203UU (NSK)

Price €18.19
#16 91053-MV1-003 i

RADIAL BALL BEARING, 6203UU (NTN)

Price €18.19
#17 91253-KZR-601

DUST SEAL, 25X35X6 (ARAI)

Price €2.70
#18 91252-KZR-601

DUST SEAL, 25X40X5

Price €2.89
#19 94101-10000

PLAIN WASHER, 10MM

Price €0.88
#20 95015-32001 i

BRAKE ARM CONNECTOR B

Price €1.50
#21 95701-1004000 i

BOLT, FLANGE, 10X40

Price €1.92
#22 11203-KVB-901

BUSH, RR CUSHION UNDER RUBBER (HOKUSHIN)

Price €8.96
