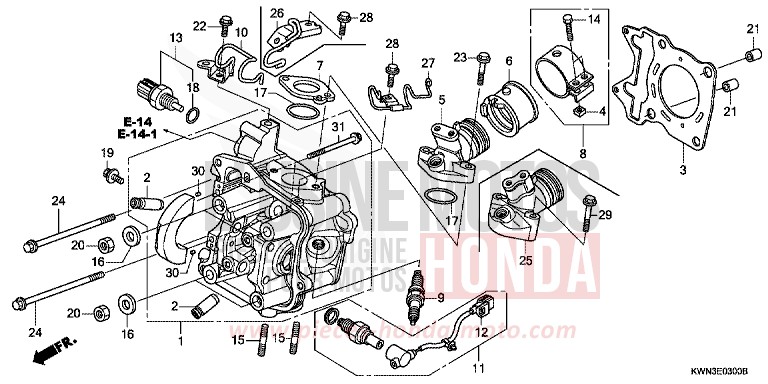

CYLINDER HEAD for WW125 CANDY ROSY RED (R340) from 2012

CYLINDER HEAD for WW125 CANDY ROSY RED (R340) from 2012
Reference
Product name
#1 12010-KZR-600

HEAD ASSY, CYLINDER

Price €386.89
#1 12010-KZR-601

HEAD ASSY, CYLINDER

Price €386.89
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €26.05
#3 12251-KZR-601

GASKET, CYLINDER HEAD

Price €18.35
#3 12252-KZR-600

GASKET, CYLINDER HEAD (OS) (USE FOR 075/100)

Price €18.35
#4 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#6 17112-KWN-900

INSULATOR, THROTTLE BODY

Contact us
#7 17119-KWN-710

INSULATOR, IN PIPE

Price €12.50
#8 17255-KWN-900

BAND, INSULATOR

Price €14.20
#9 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €10.90
#9 31927-KPH-901

PLUG, SPARK (U22EPR9) (DENSO)

Price €10.75
Contact us
#11 36532-KZR-601

SENSOR, OXYGEN

Price €213.36
#12 36533-KZR-601

CORD COMP, OXYGEN SENSOR

Price €69.91
#13 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €68.99
#14 90005-MEJ-000

BOLT, RECESSED, 5X22

Price €3.12
#15 90004-KGF-910

BOLT, STUD, 7X17

Price €5.44
#16 90483-KWN-900

WASHER, 8MM

Price €3.68
#17 91301-KRJ-901

O-RING, 29X2

Price €6.02
#18 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €4.76
#19 93404-0601200

BOLT-WASHER, 6X12

Price €1.06
#20 94030-08280

NUT, HEX, 8MM

Price €0.78
#21 94301-10160

DOWEL PIN, 10X16

Price €2.33
#24 95701-0609500

BOLT, FLANGE, 6X95

Price €3.00
#25 17111-KWN-710

PIPE, INLET

Price €41.86
Contact us
#26 17120-KWN-710

STAY COMP, FUEL HOSE

Contact us
#27 17219-KWN-710

CLAMPER, BREATHER TUBE

Contact us
#28 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#29 95701-0604000

BOLT, FLANGE, 6X40

Price €1.22
#30 94303-03050

DOWEL PIN, 3X5

Price €1.88
#31 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
